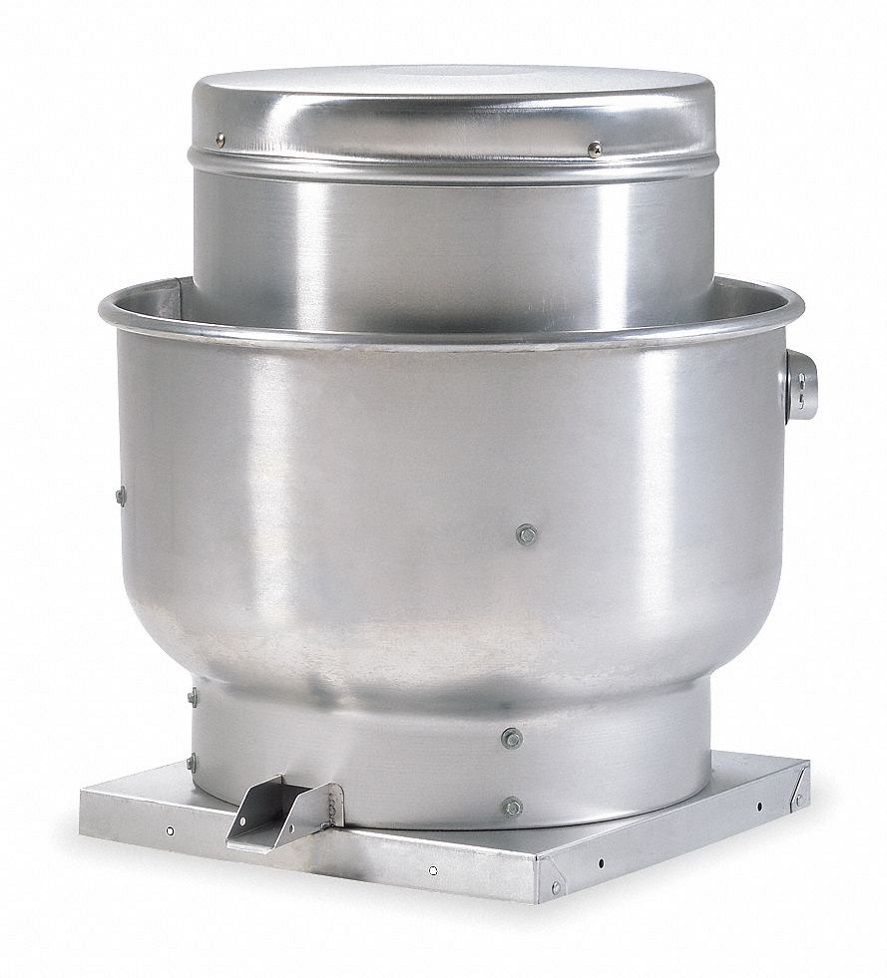

Dayton 3G-OTH-83559 — Technical Specifications
The Dayton Upblast Ventilator is a belt-drive kitchen air fan (model 800W88) with a square base, assembled and including a drive package. It features an open dripproof motor with a single speed, rated at 208 to 230/460V AC, and delivers exhaust airflow from 5,000 to 10,000 cfm at both 0.000 in SP and 0.500 in SP. This standard-efficiency unit is not designed for high-static-pressure applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 8,431 cfm, ODP, 3 hp, 3-ph |
| Brand | DAYTON |
| Wheel | 24 1/2 in |
| Assembly | Assembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard Motor |
| Number Of Speeds | 1 |
| Nameplate Voltage | 208 to 230/460V AC |
| High-Efficiency Motor | No |
| Includes Drive Package | Yes |
| Manufacturer Part Number | 800W88 |
| Exhaust Airflow @ 0.000 In SP - Range | 5,000 to 10,000 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 5,000 to 10,000 cfm |
| For High-Static Pressure Applications | No |
