Dayton 3G-OTH-182390 — Technical Specifications

Name: Dayton 3G-OTH-182390 DAYTON Ring Thermocouple: -325°F to 500°F /-200°C to 260°C, ±0.4%/±1.1°C Accuracy, Type K, Bolt (MPN 826Y36). Key specifications — Brand: DAYTON; Cable Material: FEP Insulation; Cable Length: 72 in; Accuracy: ±0.4 %; Process Mounting Connection: Bolt; Maximum Wire Gauge: 20 AWG.
Brand: Dayton

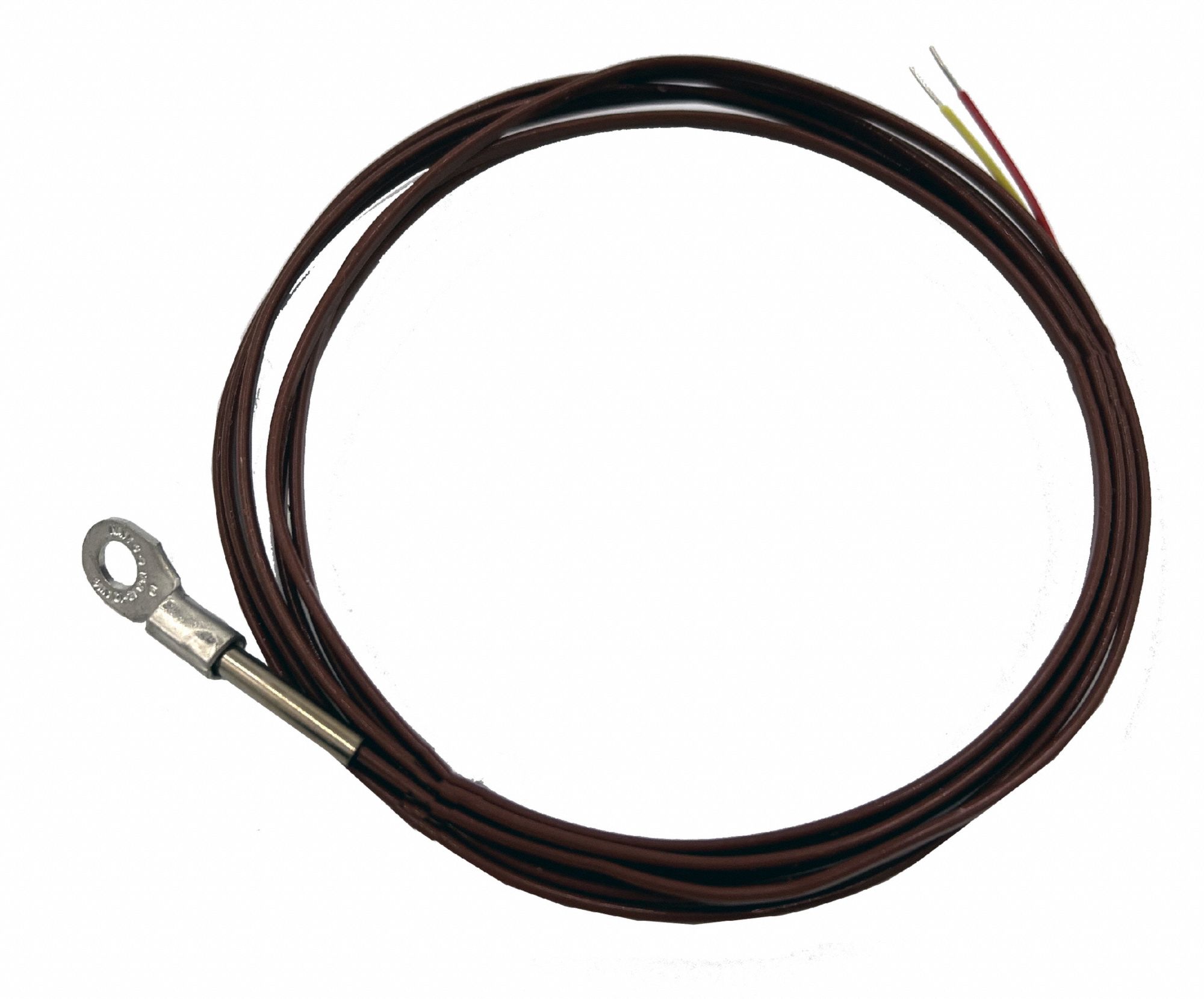

The DAYTON Ring Thermocouple (SKU 826Y36) is a Type K thermocouple for surface applications, featuring a bolt mounting connection and a temperature range of -325°F to 500°F (-200°C to 260°C). It offers ±0.4% accuracy, a 72-inch cable with FEP insulation, and a maximum wire gauge of 20 AWG.

View Product & Quote

Technical Specifications

Parameter	Value
Type	±0.4%/±1.1°C Accuracy, Type K, Bolt
Brand	DAYTON
Accuracy	±0.4 %
Cable Length	72 in
Cable Material	FEP Insulation
Maximum Wire Gauge	20 AWG
Manufacturer Part Number	826Y36
Process Mounting Connection	Bolt
