Dwyer 3G-OTH-174091 — Technical Specifications

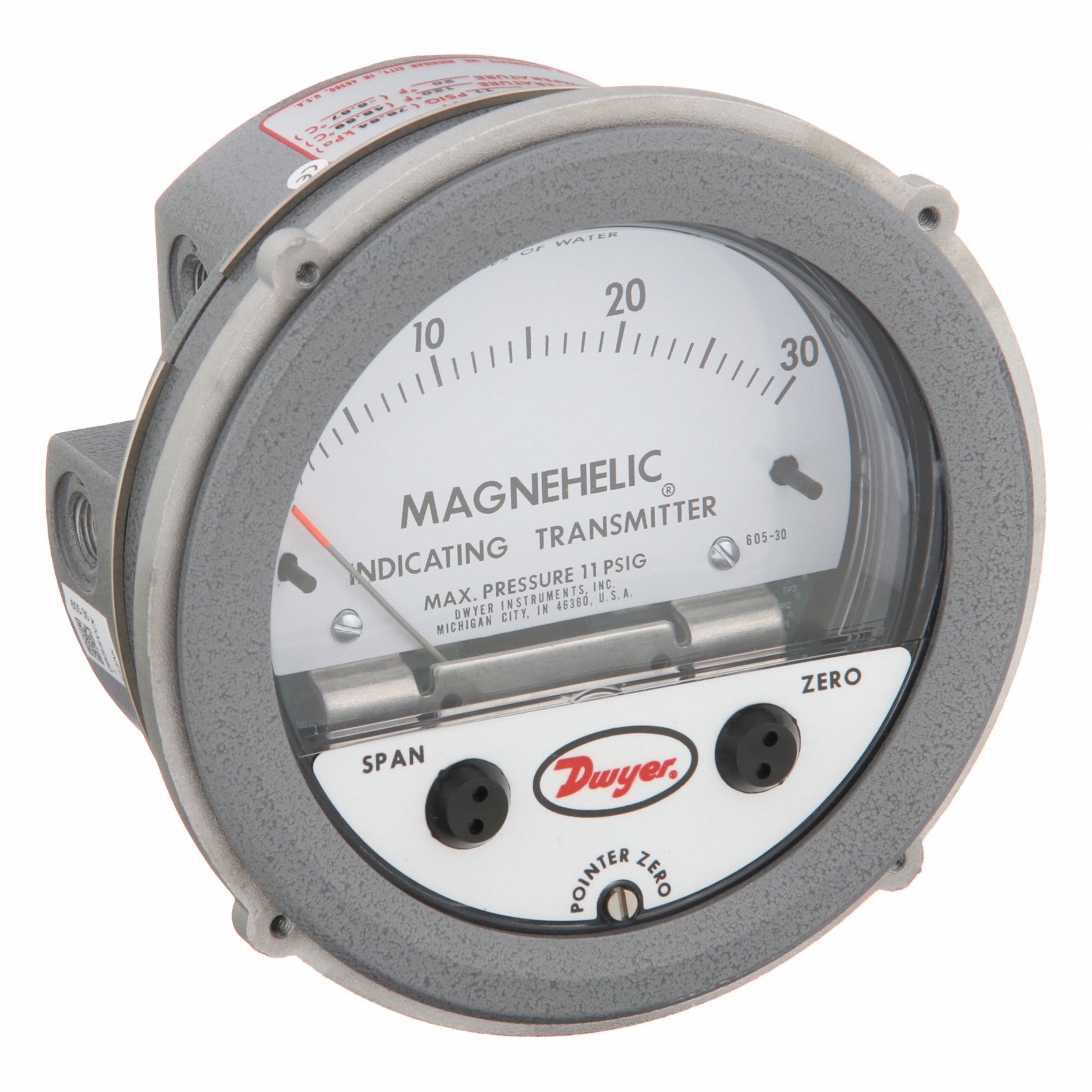

The Dwyer Series 605 Indicating Transmitter with Dial Display (MPN 605-30) is a differential pressure transmitter featuring an analog dial indicator and a 4 to 20mA output. It offers an electrical accuracy of ±0.5% and a mechanical accuracy of ±2%, with a pressure range of 0 in wc to 30 in wc. The device includes a female NPT process connection and a terminal block, with a 5-inch dial diameter.
Technical Specifications
| Parameter | Value |
|---|---|
| Dia | 5 in |
| Type | 0 in wc to 30 in wc, Terminal Block, 605, 4 to 20mA |
| Brand | DWYER |
| Series | 605 |
| Accuracy | ±0.5% (Electrical) |
| IP Rating | Not Rated |
| Display Type | Dial |
| Output Power | 4 to 20mA |
| Indicator Type | Analog / Dial |
| Pressure Range | 0 in wc to 30 in wc |
| NEMA Enclosure Rating | Not Rated |
| Process Connection Type | NPT |
| Manufacturer Part Number | 605-30 |
| Process Connection Gender | Female |
| Includes NIST-Traceable Calibration Certificate | No NIST-Traceable Calibration Certificate Included |
