Dwyer 3G-OTH-174513 — Technical Specifications

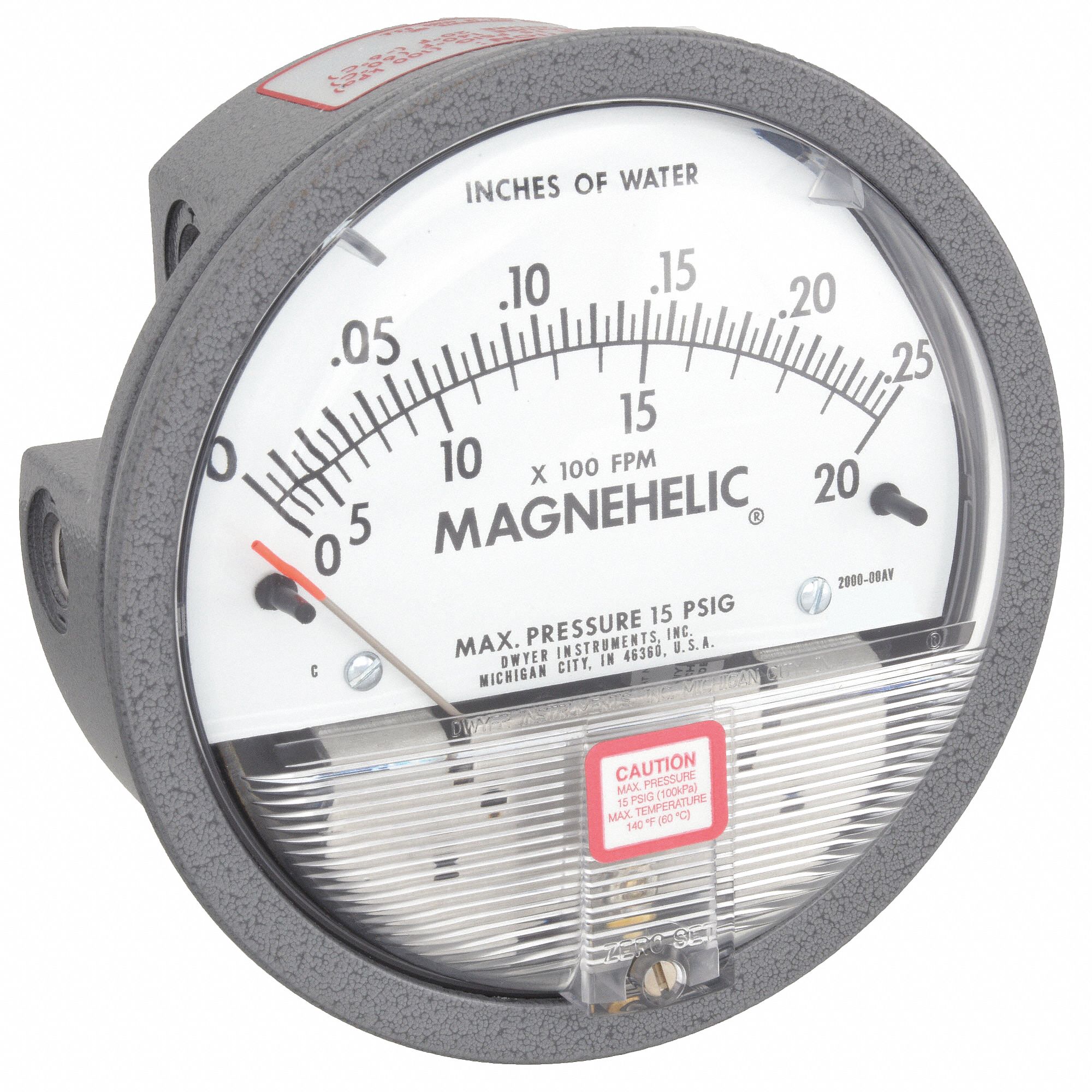

The Dwyer Series 2000 Differential Pressure Gauge (MPN 2000-00AV) is a low operating pressure differential gauge with air velocity, featuring a 4-inch dial and a diaphragm sensor in a die-cast aluminum housing. It has a back/single-side connection with 1/8-inch NPT female ports and an IP67 enclosure rating. A certificate of calibration is not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Dial | 4 in |
| Type | 2000, IP67, IP67 |
| Series | 2000 |
| NPT Female | 1/8 in |
| Sensor Type | Diaphragm |
| Housing Material | Die Cast Aluminum |
| Manufacturer Part Number | 2000-00AV |
| Certificate Of Calibration | Not Included |
