Dwyer 3G-OTH-89784 — Technical Specifications

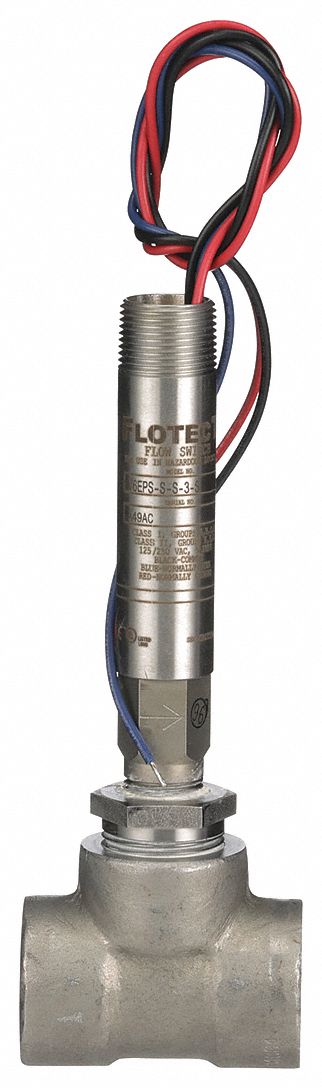

The DWYER V6EPS-S-S-3-S is an inline hazardous-location paddle-type liquid flow switch designed for pipe sizes of 1/2 in. It carries a hazardous location rating of Class I, Div 1 and 2, Group A, B, C, D, and features a contact rating of 5 A @ 125/250V AC and 42 A (Inductive) @ 30V DC for CSA, ATEX and IECEx models. This switch is constructed with stainless steel and has a 1 in NPT connection.
Technical Specifications
| Parameter | Value |
|---|---|
| NPT | 1 in |
| Type | 1/2 in/1/4 in/2 in/3/8 in For Pipe Size, Stainless Steel |
| Brand | DWYER |
| For Pipe Size | 1/2 in |
| Contact Rating (AC) | 5 A @ 125/250V |
| Contact Rating (DC) | 42 A (Inductive) @ 30V (CSA, ATEX and IECEx Models) |
| Manufacturer Part Number | V6EPS-S-S-3-S |
| Hazardous Location Rating | Class I, Div 1 and 2, Group A, B, C, D |
