Dwyer 3G-OTH-88400 — Technical Specifications

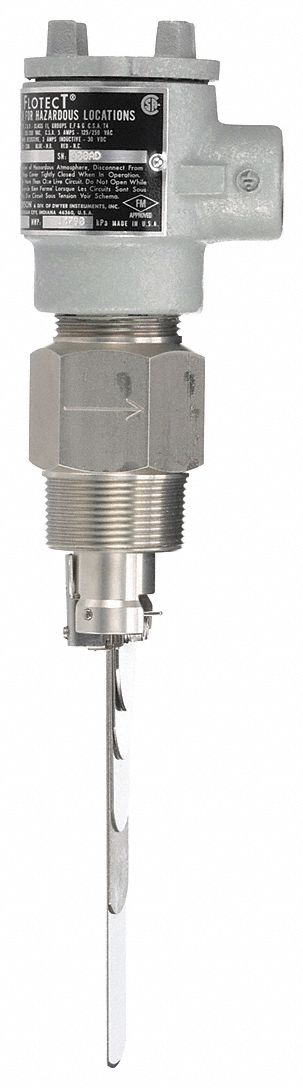

The Dwyer V4-SS-2-D-U is an insertion-style hazardous-location liquid flow switch with a paddle design, for pipe sizes of 1-1/2 inches. It features a stainless steel body with 1-1/2 inch NPT connections and a DPDT switch output. The switch is rated for AC contacts at 10 A @ 125/250V and DC contacts at 5 A resistive, 3 A inductive @ 30 VDC, with a mercury-wetted option for 1 A @125 VAC. It carries a hazardous location rating of Class I, Div 1 and 2, Group A, B, C, D.
Technical Specifications
| Parameter | Value |
|---|---|
| NPT | 1 1/2 in |
| Type | Stainless Steel, NPT, DPDT |
| Brand | DWYER |
| For Pipe Size | 1-1/2 in |
| Contact Rating (AC) | 10 A @ 125/250V |
| Contact Rating (DC) | 5 A res., 3 A ind. @ 30 VDC . MV option: 1 A @125 VAC |
| Manufacturer Part Number | V4-SS-2-D-U |
| Hazardous Location Rating | Class I, Div 1 and 2, Group A, B, C, D |
