Dwyer 3G-OTH-93683 — Technical Specifications

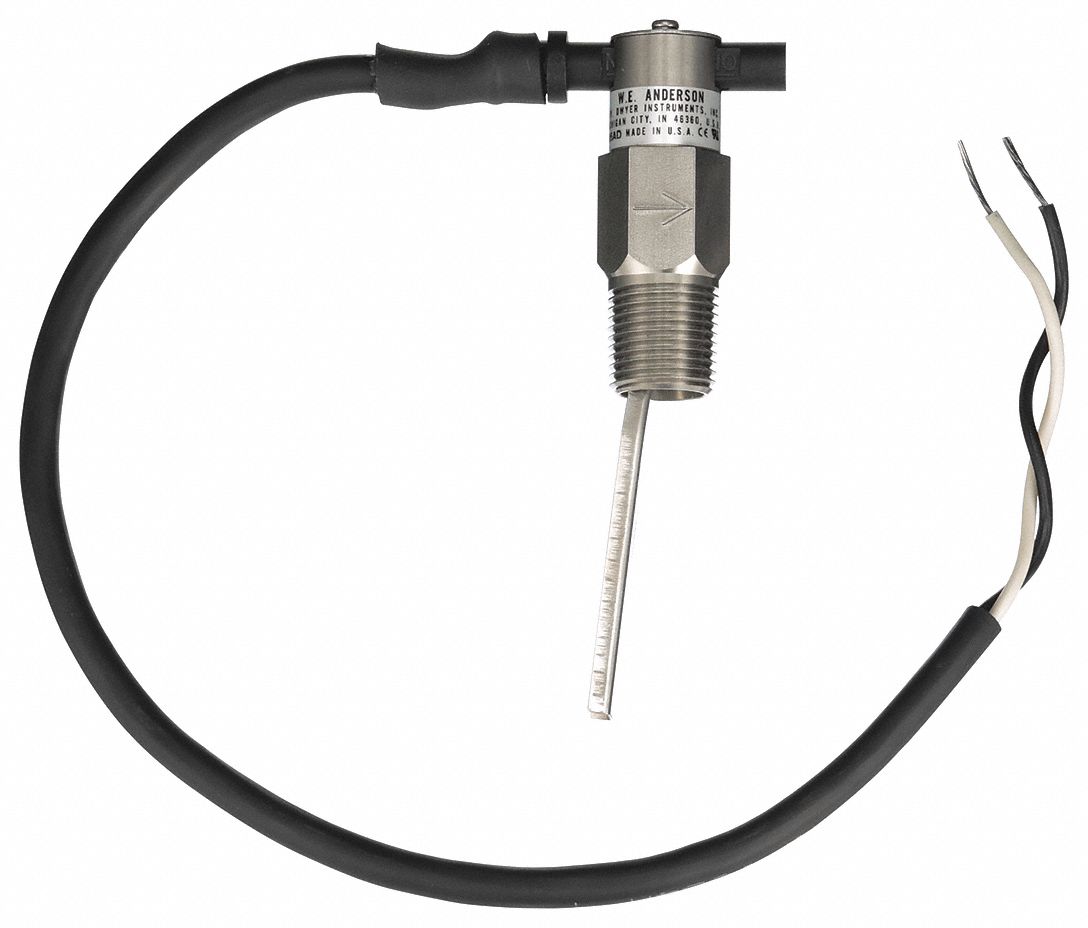

The DWYER Liquid Flow Switch: Paddle is an insertion-style switch for liquids, model V10SS. It is designed for a 2-inch pipe size and features a stainless steel body with a 1/2-inch NPT connection and SPST contact. The switch has a contact rating of 0.5 A @ 120V AC and 0.001 A @ 200 VDC resistive.
Technical Specifications
| Parameter | Value |
|---|---|
| NPT | 1/2 in |
| Type | 1/2 in/2 in For Pipe Size, Stainless Steel, NPT, SPST |
| Brand | DWYER |
| For Pipe Size | 2 in |
| Contact Rating (AC) | 0.5 A @ 120V |
| Contact Rating (DC) | 0.001 A @ 200 VDC res. |
| Manufacturer Part Number | V10SS |
