Dwyer 3G-OTH-174087 — Technical Specifications

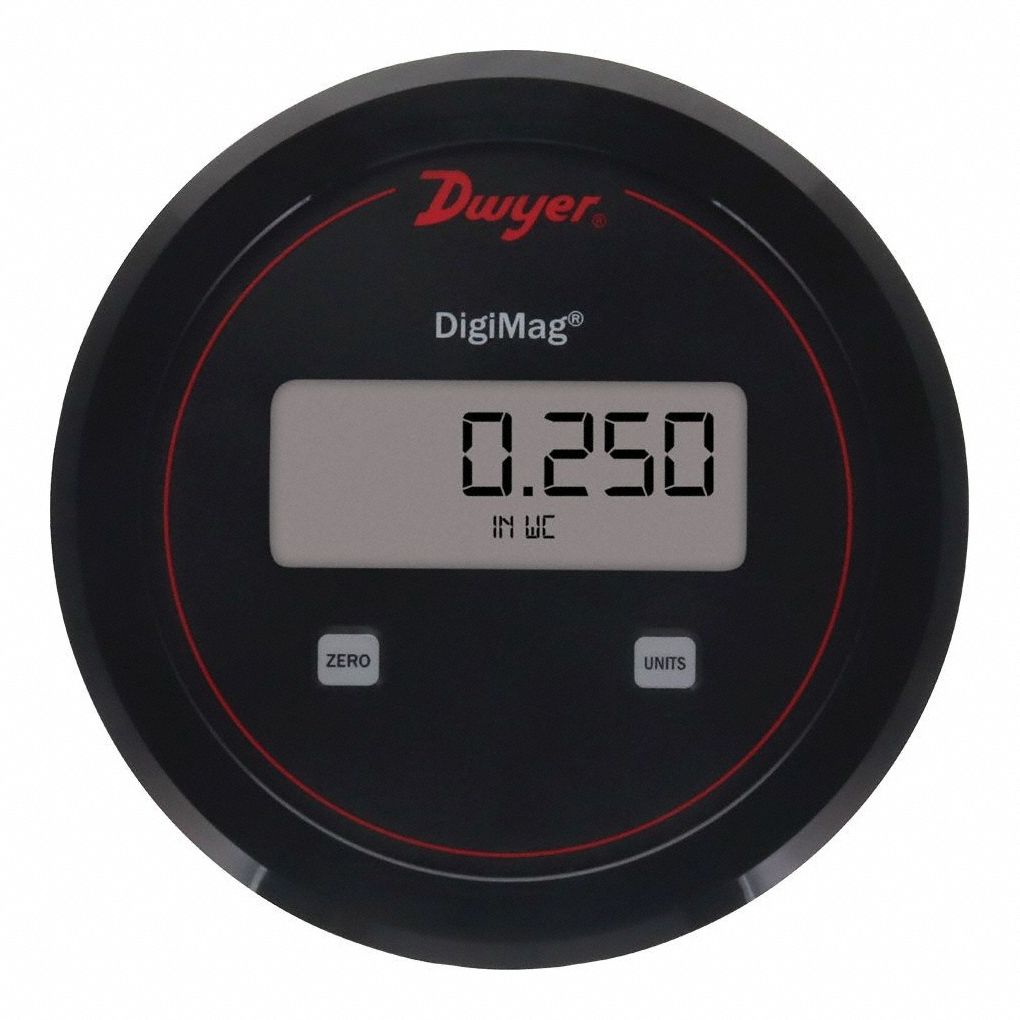

The DWYER Series DM Digital Pressure Transmitter (MPN DM-008) is a differential pressure transmitter with a digital dial display, featuring a plastic housing with IP66 and NEMA 4X ratings. It offers a 4 to 20 mA output, ±1.00% of Full Scale accuracy, and a hose barb process connection. The unit has a 0 in wc to 5 in wc range and includes screw terminals.
Technical Specifications
| Parameter | Value |
|---|---|
| Dia | 5 in |
| Type | 0 in wc to 5 in wc, Screw Terminals, 4X |
| Brand | DWYER |
| Series | Series DM |
| Accuracy | ±1.00% of Full Scale |
| IP Rating | IP66 |
| Display Type | Digital |
| Output Power | 4 to 20mA |
| Indicator Type | Digital |
| Housing Material | Plastic |
| NEMA Enclosure Rating | 4X |
| Process Connection Type | Hose Barb |
| Manufacturer Part Number | DM-008 |
