Dwyer 3G-OTH-29259 — Technical Specifications

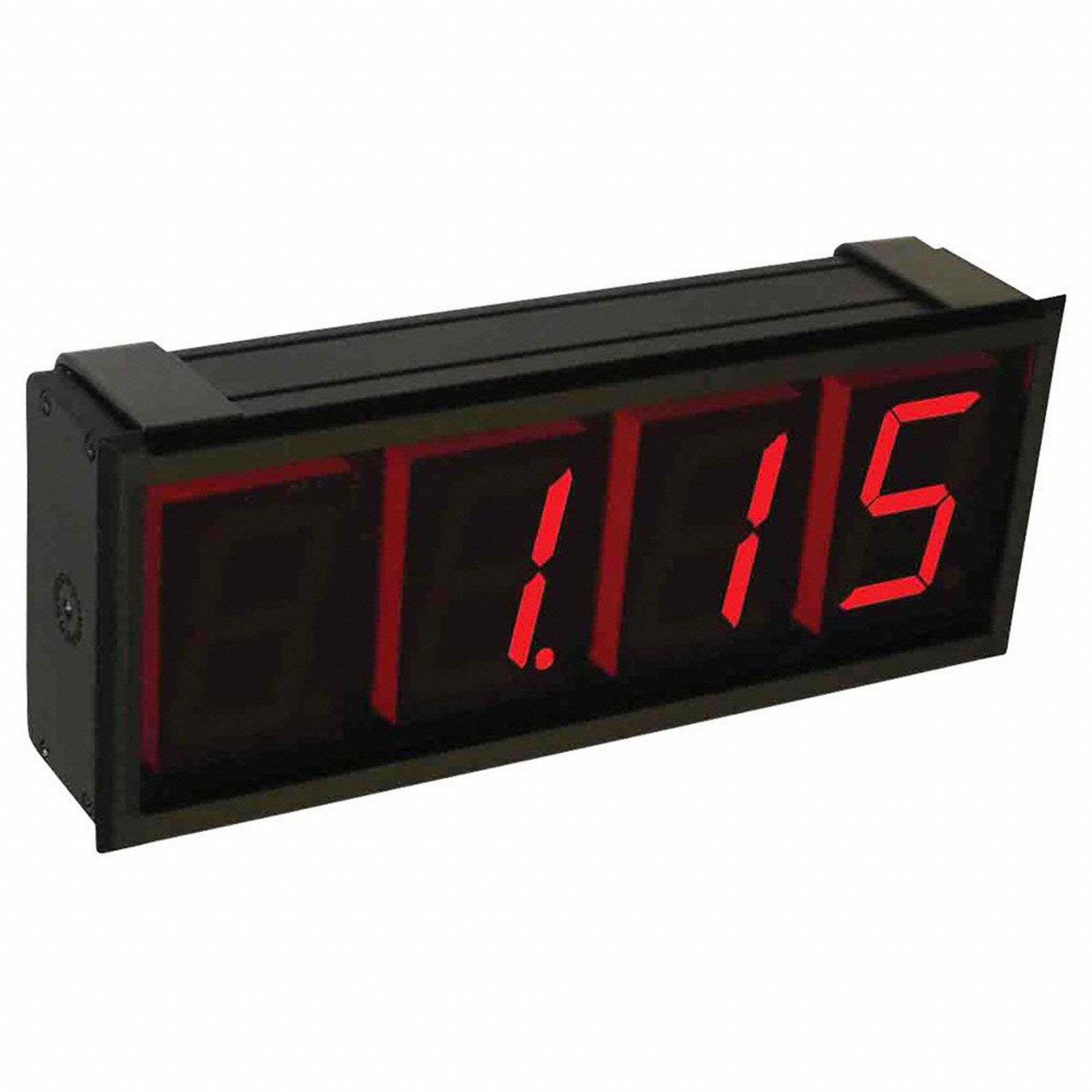

The Dwyer DPMX-3-LV is an extra large digital panel meter for DC current input, featuring a red LED display with 2.3-inch digit height. It operates on 10.5 V AC – 30 V AC or 10.5 V DC – 30 V DC power, with +/-1% accuracy and screw clamp terminal connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 10.5 V DC – 30 V DC, 2.3 in Digit Ht - Max., DPMX |
| Brand | DWYER |
| Series | DPMX |
| Accuracy | +/-1% |
| Input Type | DC Current |
| Product Type | Extra Large Digital Panel Meter |
| Manufacturer Part Number | DPMX-3-LV |
| Terminal Connection Type | Screw Clamp |
| Digital Display Screen Type | LED |
| Digital Display Screen Color | Red |
