Dwyer 3G-OTH-361438 — Technical Specifications

Name: Dwyer 3G-OTH-361438 DWYER Temperature Controller: 32A, 1/32 DIN Size, RTD/Thermocouple, 100 to 240V AC, 14°F to 131°F (MPN 32A020). Key specifications — Brand: DWYER; Alarms: No Alarm; Control Mode: Self Adjustable; Current: 20 mA; Display Type: Digital; Input Voltage: 100 to 240V AC; Output: 5V DC; Product Type: Temperature Controller.
Brand: Dwyer

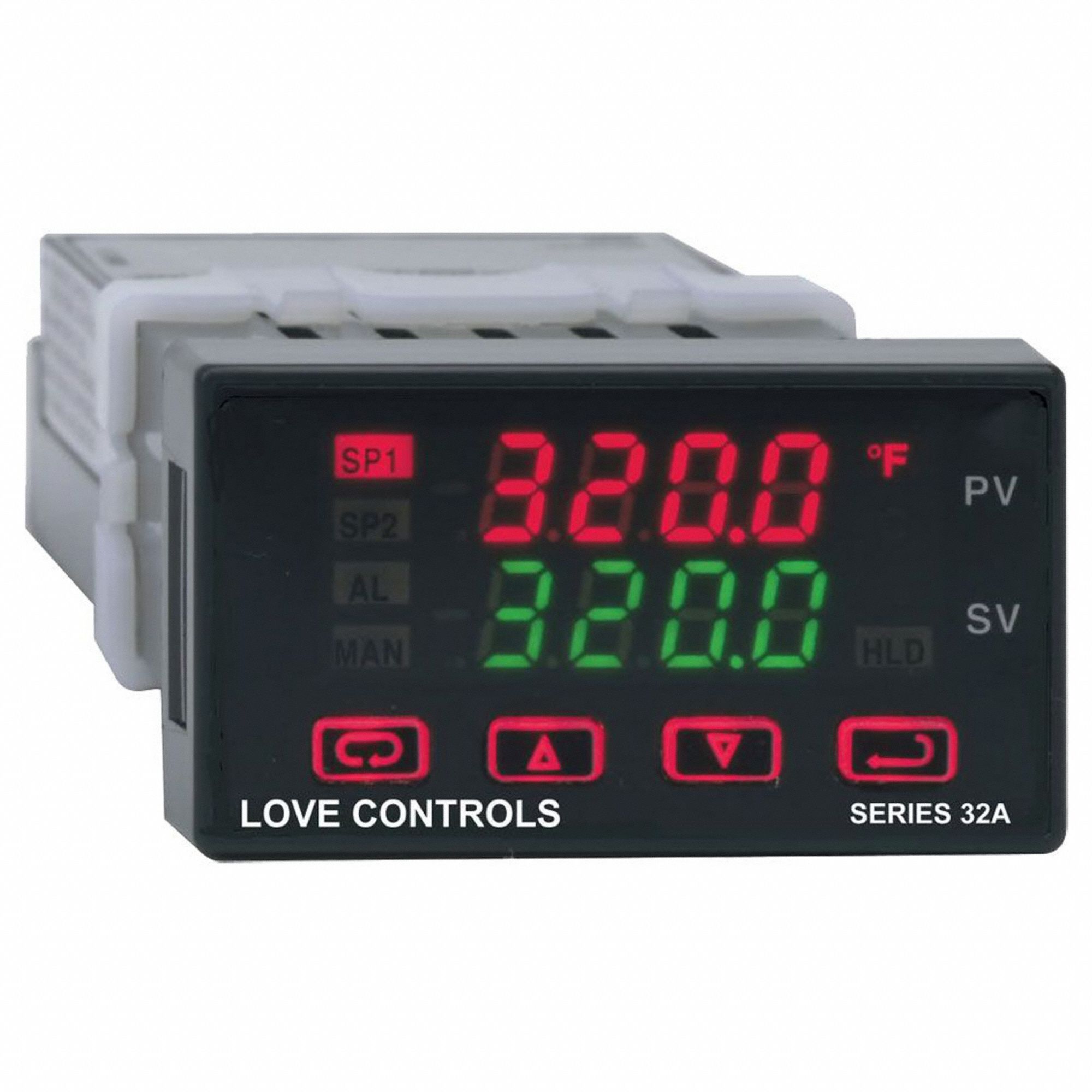

The Dwyer 32A is a 1/32 DIN digital temperature controller with a self-adjustable control mode. It accepts RTD or thermocouple sensor input, operates on 100 to 240V AC input voltage, and provides a 5V DC output at 20 mA. This model (MPN 32A020) features a digital display and no alarm.

View Product & Quote

Technical Specifications

Parameter	Value
AC	100 to 240V
Type	RTD/Thermocouple, 14°F to 131°F
Brand	DWYER
Alarms	No Alarm
Output	5V DC
Series	32A
Current	20 mA
DIN Size	1/32
Sensor Type	RTD
Control Mode	Self Adjustable
Display Type	Digital
Product Type	Temperature Controller
Input Voltage	100 to 240V AC
Manufacturer Part Number	32A020
