Dwyer 3G-OTH-361479 — Technical Specifications

Name: Dwyer 3G-OTH-361479 DWYER Temperature Controller: 2600, 1/4 DIN Size, Fuzzy Logic/PID, 100 to 240V AC, 14°F to 131°F (MPN 26133). Key specifications — Brand: DWYER; Alarms: Relay, 10A, SPDT; Control Mode: PID; Current: 10 A; Display Type: Digital; Input Voltage: 100 to 240V AC; Output: (2) Relay; Product Type: Temperature Controller.
Brand: Dwyer

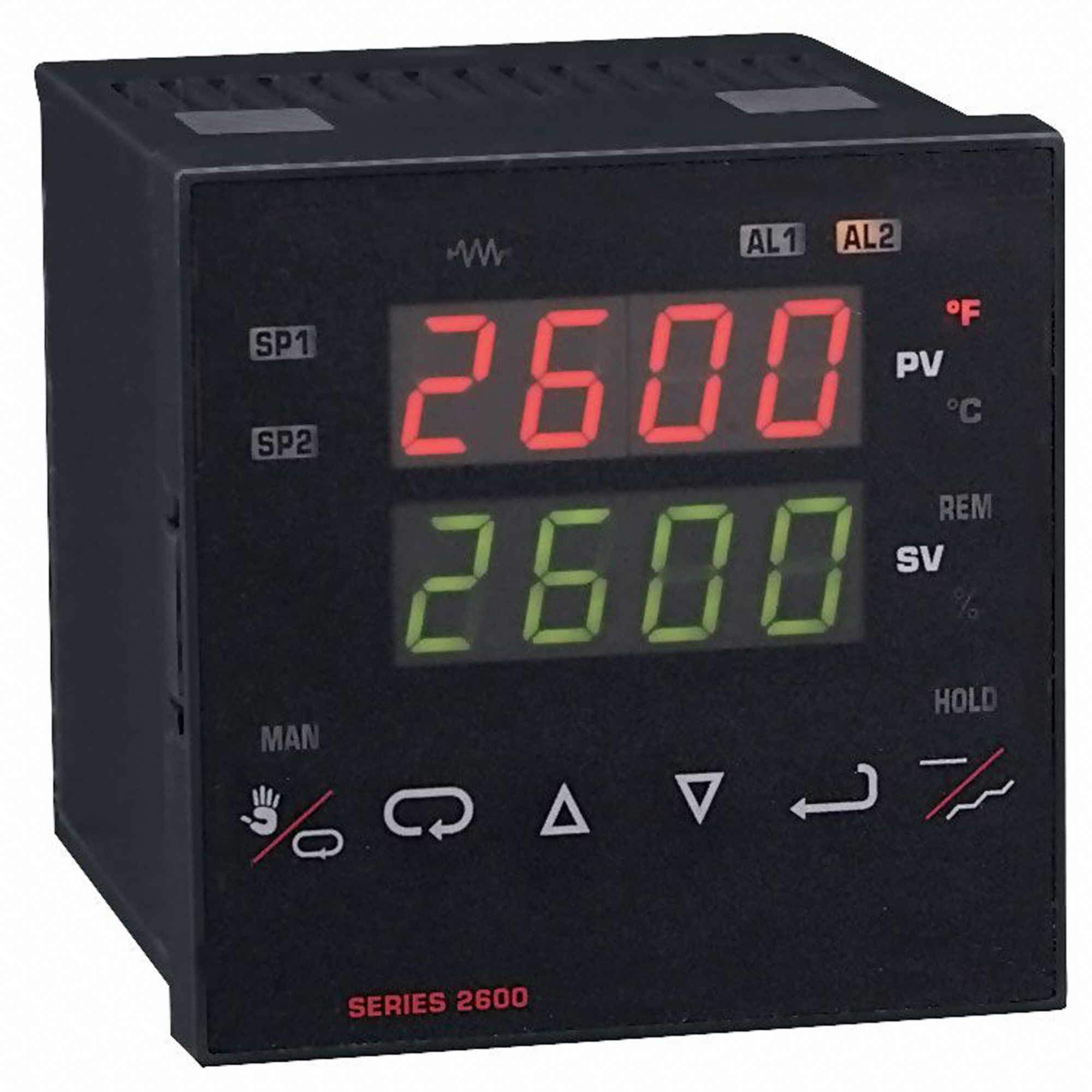

The Dwyer Series 2600 Temperature Controller (MPN 26133) is a 1/4 DIN digital PID controller with Fuzzy Logic, accepting 100 to 240V AC input. It features dual relay outputs, a 10 A SPDT relay alarm, and operates with an RTD sensor. The controller's digital display provides local readout within an ambient range of 14°F to 131°F.

View Product & Quote

Technical Specifications

Parameter	Value
AC	100 to 240V
Type	Fuzzy Logic/PID, 14°F to 131°F
Brand	DWYER
Alarms	Relay, 10A, SPDT
Output	(2) Relay
Series	2600
Current	10 A
DIN Size	1/4
Sensor Type	RTD
Control Mode	PID
Display Type	Digital
Product Type	Temperature Controller
Input Voltage	100 to 240V AC
Manufacturer Part Number	26133
