Dwyer 3G-OTH-361530 — Technical Specifications

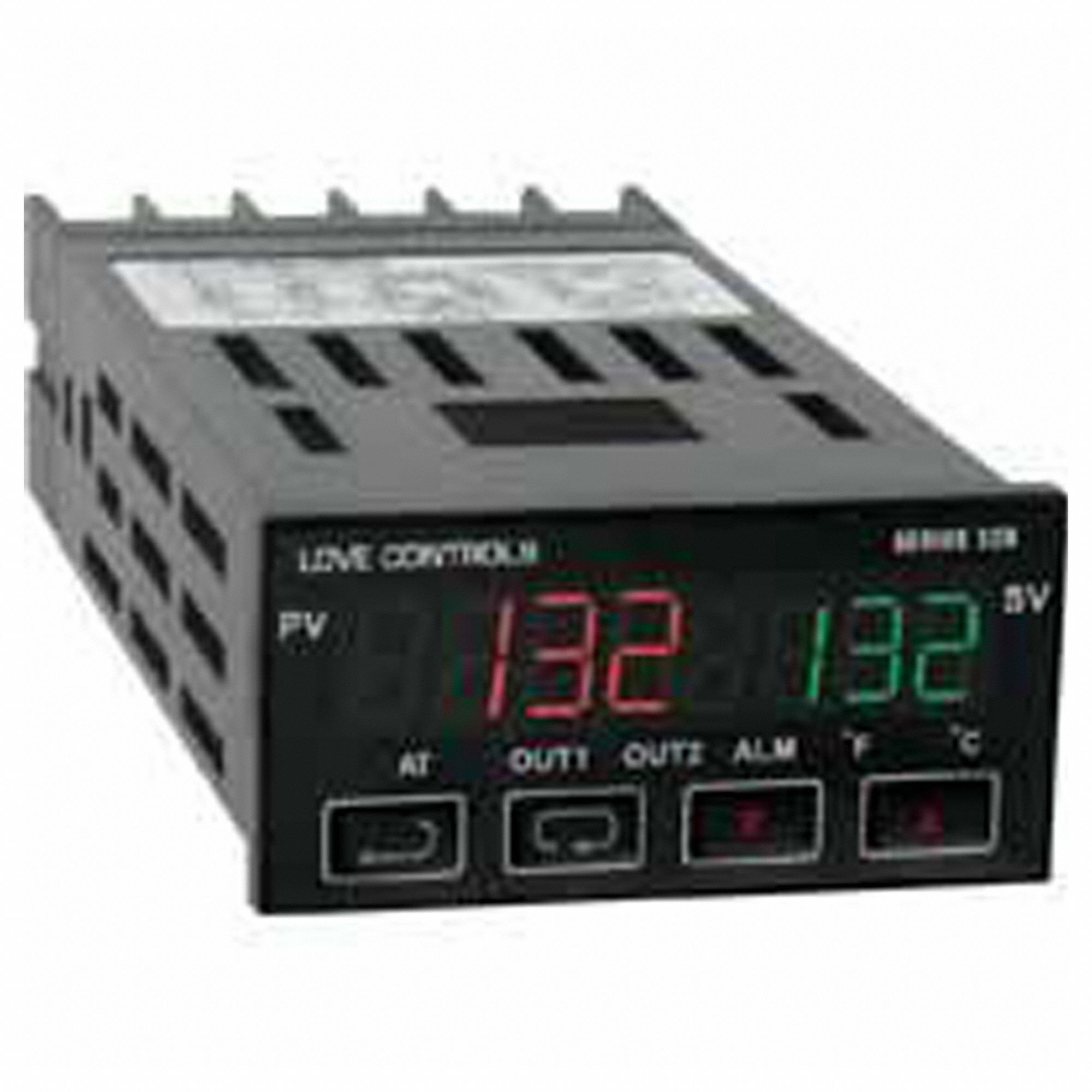

The Dwyer 32B-53-LV is a 1/32 DIN temperature controller with a digital display and self-adjustable control mode. It accepts thermocouple sensor input, operates on 24V DC input voltage, and provides a current output rated at 5 A. This unit is designed for temperature control applications within a 32°F to 122°F range.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 24V |
| Type | RTD/Thermocouple, 32°F to 122°F, Digital |
| Brand | DWYER |
| Output | Current |
| Series | 32B |
| Current | 5 A |
| DIN Size | 1/32 |
| Sensor Type | Thermocouple |
| Control Mode | Self Adjustable |
| Display Type | Digital |
| Product Type | Temperature Controller |
| Input Voltage | 24V DC |
| Manufacturer Part Number | 32B-53-LV |
