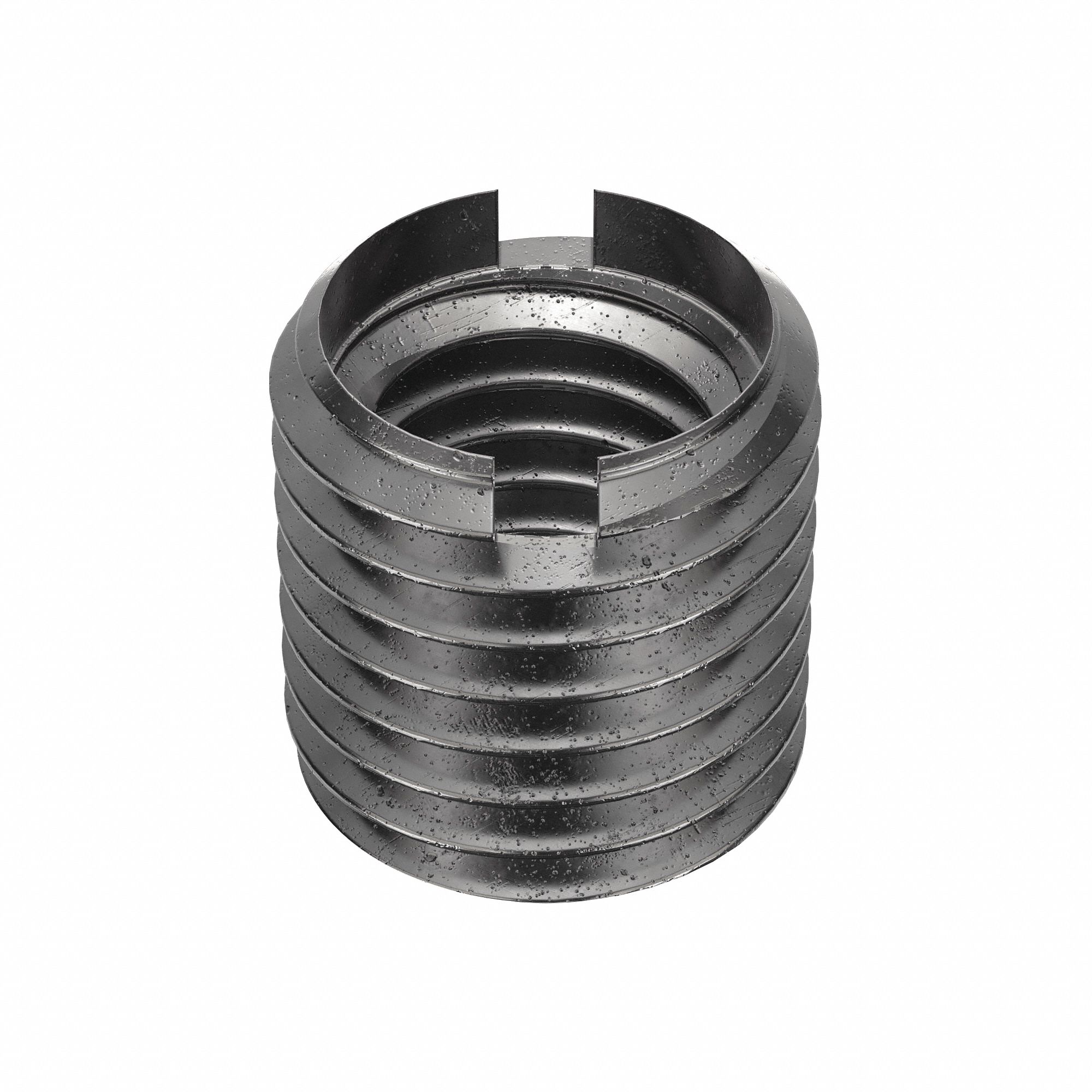

E-z Lok 3G-OTH-534119 — Technical Specifications
The E-Z LOK Self Locking Thread Insert is a heavy-wall insert with M16-2.00 external thread size and 1/2"-13 internal thread size, supplied in a 5-pack (MPN 550-8-PK5). It features UNC internal and metric external threads, a 14 mm drill bit size, and compatible tap size M16-2.00, with external thread fit 2A and internal thread fit 2B.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M16-2.00 Ext Thrd Sz, 5 PK |
| Wall Type | Heavy Wall |
| Int Thrd Sz | 1/2"-13 |
| Thread Type | UNC Internal/Metric External |
| Drill Bit Size | 14 mm |
| Compatible Tap Size | M16-2.00 |
| External Thread Fit | 2A |
| Internal Thread Fit | 2B |
| System Of Measurement | Inch/Metric |
| Manufacturer Part Number | 550-8-PK5 |
