Eaton 3G-OTH-37041 — Technical Specifications

Name: Eaton 3G-OTH-37041 EATON Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Extended Lever, 2NO, Metallic (MPN HT8JLH3AAA5). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Momentary/Maintained; Cam: 3A; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

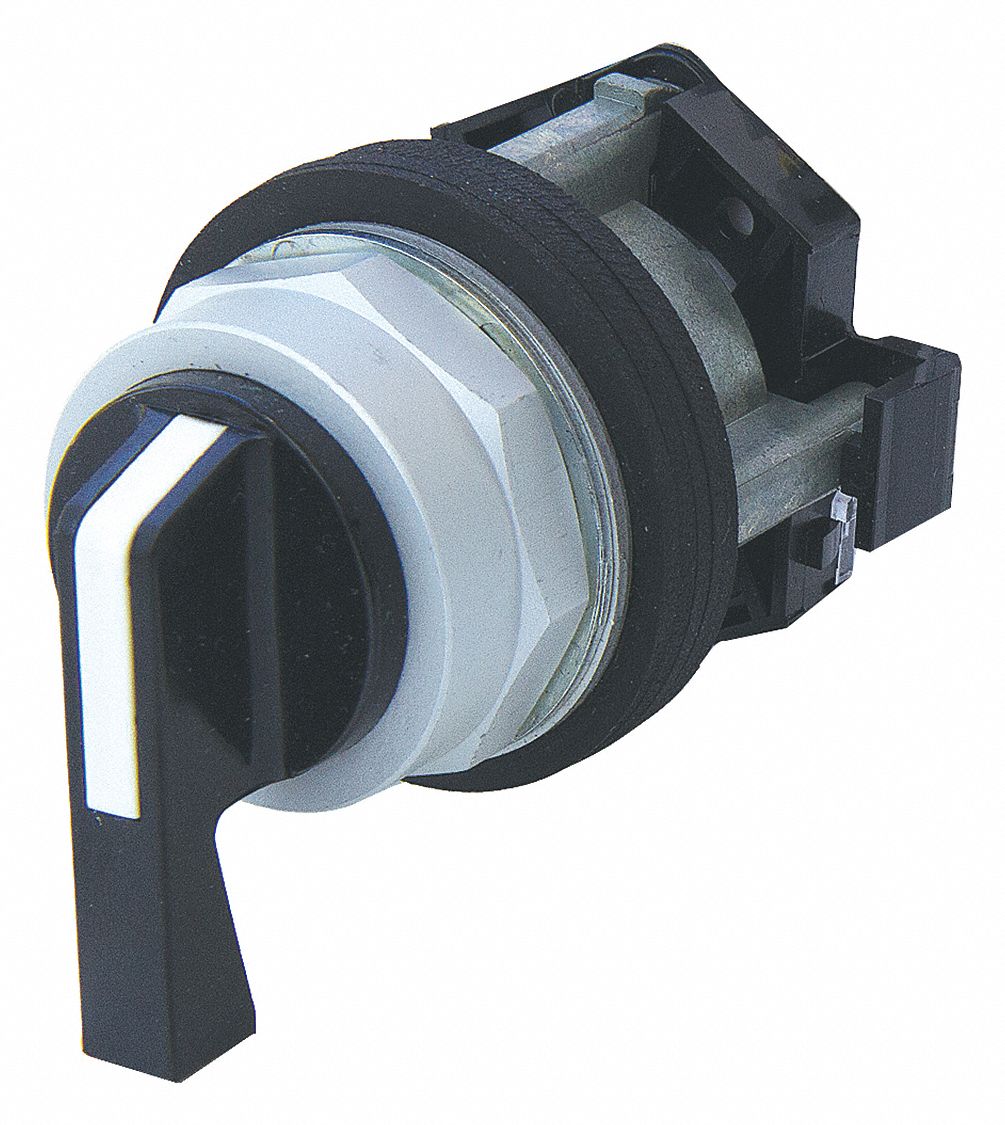

The EATON HT800 Series Selector Switch (MPN HT8JLH3AAA5) is a 30 mm panel-mounting, non-illuminated selector switch with a long-handled knob and polymer operator head. It features a metallic bezel, momentary/maintained action, and a 3A cam with two positions (both On). Its AC contact rating is 10 A @ 600 V, and its DC contact rating is 5 A @ 250 V.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	3A
Type	Extended Lever, 2NO, Metallic
Brand	EATON
Action	Momentary/Maintained
Series	HT800
Positions	2
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	HT8JLH3AAA5
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
