Eaton 3G-OTH-37004 — Technical Specifications

Name: Eaton 3G-OTH-37004 EATON Selector Switch: 22 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO, Metallic (MPN C22-WK3-K20). Key specifications — AC Contact Rating: 1.5 A @ 230 V; Action: Momentary/Momentary/Momentary; Cam: No Cam Required; DC Contact Rating: 3 A @ 24 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

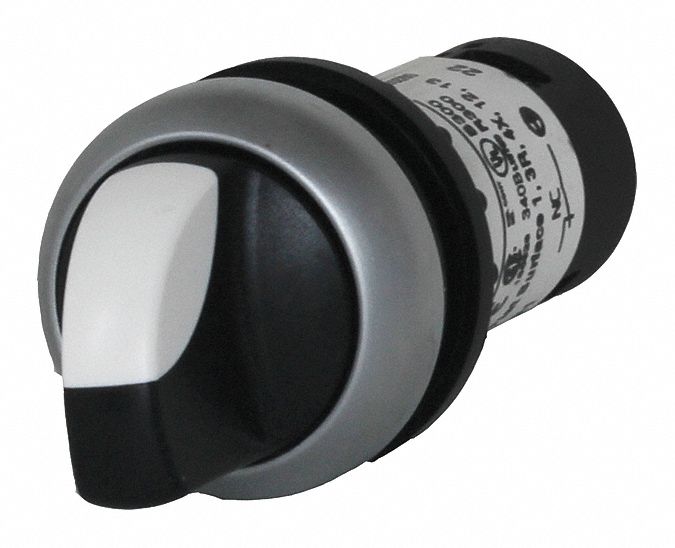

The EATON C22-WK3-K20 is a 22 mm panel-mounting selector switch from the C22 series, featuring a short-handled knob, non-illuminated polycarbonate operator head, and metallic bezel. It offers three momentary positions (On-Off-On) with AC contact rating of 1.5 A @ 230 V and DC contact rating of 3 A @ 24 V, and requires no cam. This switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Required
Type	Short Lever, 2NO, Metallic
Brand	EATON
Action	Momentary/Momentary/Momentary
Series	C22
Positions	3
AC Contact Rating	1.5 A @ 230 V
DC Contact Rating	3 A @ 24 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	C22-WK3-K20
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
