Eaton 3G-OTH-34755 — Technical Specifications

Name: Eaton 3G-OTH-34755 EATON Lighted Rocker Switch: 2 Positions, SPST, Off/Momentary On, Green (MPN 8005K35N313V32). Key specifications — DC Contact Rating: 15 A @ 28 V; Horsepower: 3/4 hp @ 250 V; Operator Illumination: Illuminated; Switch Color: Black; Terminal Connection Type: 1/4 in Spade; Includes Lamp Module: Lamp Module Included; Includes Lens: Lens Included; Series: 8005.
Brand: Eaton

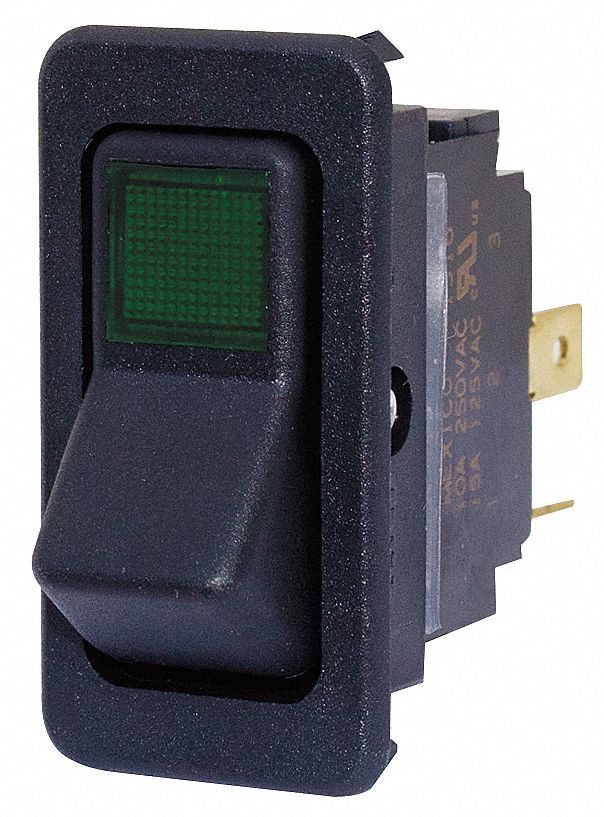

The EATON Lighted Rocker Switch is a general-purpose rocker switch from the Series 8005, featuring a 2-position SPST configuration with Off/Momentary On operation and green illumination. It has a DC contact rating of 15 A @ 28 V and a horsepower rating of 3/4 hp @ 250 V, with a black switch color and 1/4 in spade terminal connections. The unit includes a lamp module and lens.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	EATON
Series	8005
Horsepower	3/4 hp @ 250 V
Switch Color	Black
Includes Lens	Lens Included
Displayed Brand	EATON
DC Contact Rating	15 A @ 28 V
Includes Lamp Module	Lamp Module Included
Operator Illumination	Illuminated
Manufacturer Part Number	8005K35N313V32
Terminal Connection Type	1/4 in Spade
