Eaton 3G-OTH-36224 — Technical Specifications

Name: Eaton 3G-OTH-36224 EATON Photoelectric Sensor: M18 Threaded, Built-in Connector, 4 - Pin Micro, 10-30V DC, NPN (MPN E65-SMPP050-HLD). Key specifications — Brand: EATON; Electrical Connection: Dual Key Micro Connector; Manufacturer Part Number: E65-SMPP050-HLD; Body Material: Resin; DC Supply Voltage Rating: 10-30V DC; NEMA Enclosure Rating: 1; Series: E65 SM; Electrical Installation Type: Direct Connector.
Brand: Eaton

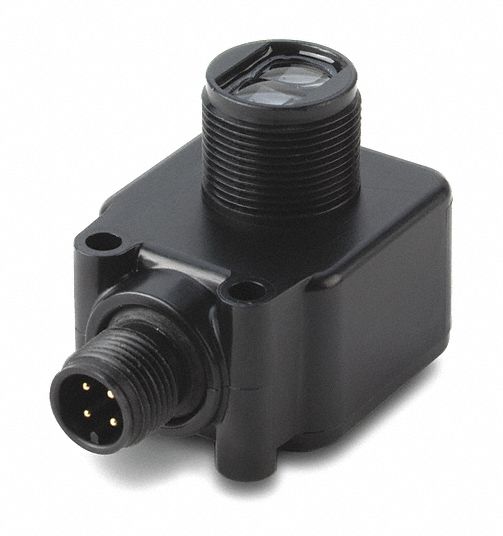

The EATON E65 SM Series photoelectric sensor is a rectangular sensor with a built-in connector, featuring an M18 threaded nominal diameter and a resin body. It operates on a 10-30V DC supply voltage with a direct connector electrical installation type and a dual key micro connector. This NEMA 1 rated sensor uses an NPN output configuration and is identified by manufacturer part number E65-SMPP050-HLD.

View Product & Quote

Technical Specifications

Parameter	Value
DC	10-30V
Type	Built-in Connector, NPN
Brand	EATON
Series	E65 SM
Pin Micro	4 -
Body Material	Resin
Electrical Connection	Dual Key Micro Connector
NEMA Enclosure Rating	1
Nominal Sensor Diameter	M18 Threaded
DC Supply Voltage Rating	10-30V DC
Manufacturer Part Number	E65-SMPP050-HLD
Electrical Installation Type	Direct Connector
