Eaton 3G-OTH-36377 — Technical Specifications

Name: Eaton 3G-OTH-36377 EATON Selector Switch: 22 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO/1NC, Metallic (MPN M22M-WRK-K11). Key specifications — AC Contact Rating: 6 A @ 230 V; Action: Maintained/Maintained; Cam: No Cam Required; DC Contact Rating: 3 A @ 24 V; Hazardous Location Specification: Not Rated; Operator Head Material: Metal; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

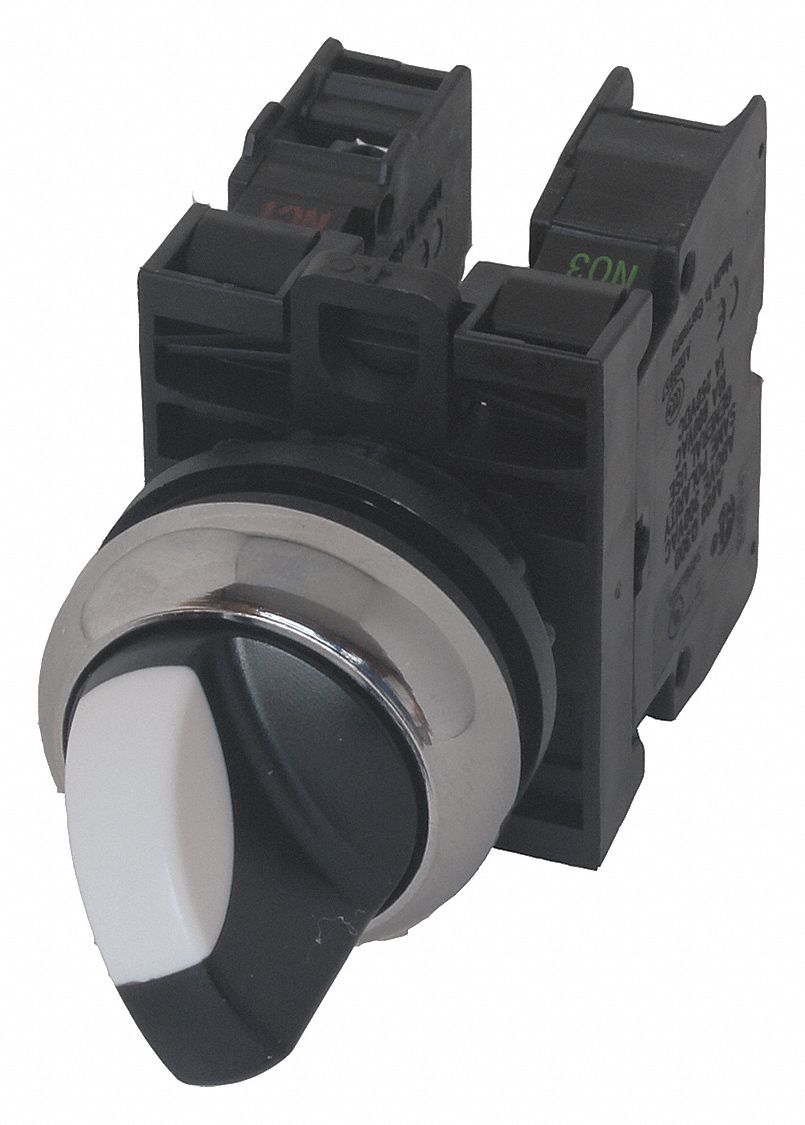

The EATON M22 Series Selector Switch (SKU 30XE61, MPN M22M-WRK-K11) is a 22 mm panel-mounting, non-illuminated selector switch with a metal operator head and short-handled knob. It features a maintained/maintained action across two positions (On/On) with no third or fourth position, and requires no cam. Its electrical ratings are 6 A at 230 V AC and 3 A at 24 V DC, and it is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Required
Type	Short Lever, 1NO/1NC, Metallic
Brand	EATON
Action	Maintained/Maintained
Series	M22
Positions	2
AC Contact Rating	6 A @ 230 V
DC Contact Rating	3 A @ 24 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Metal
Manufacturer Part Number	M22M-WRK-K11
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
