Eaton 3G-OTH-35373 — Technical Specifications

Name: Eaton 3G-OTH-35373 EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO, Metallic (MPN 10250T21KB). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: 3; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

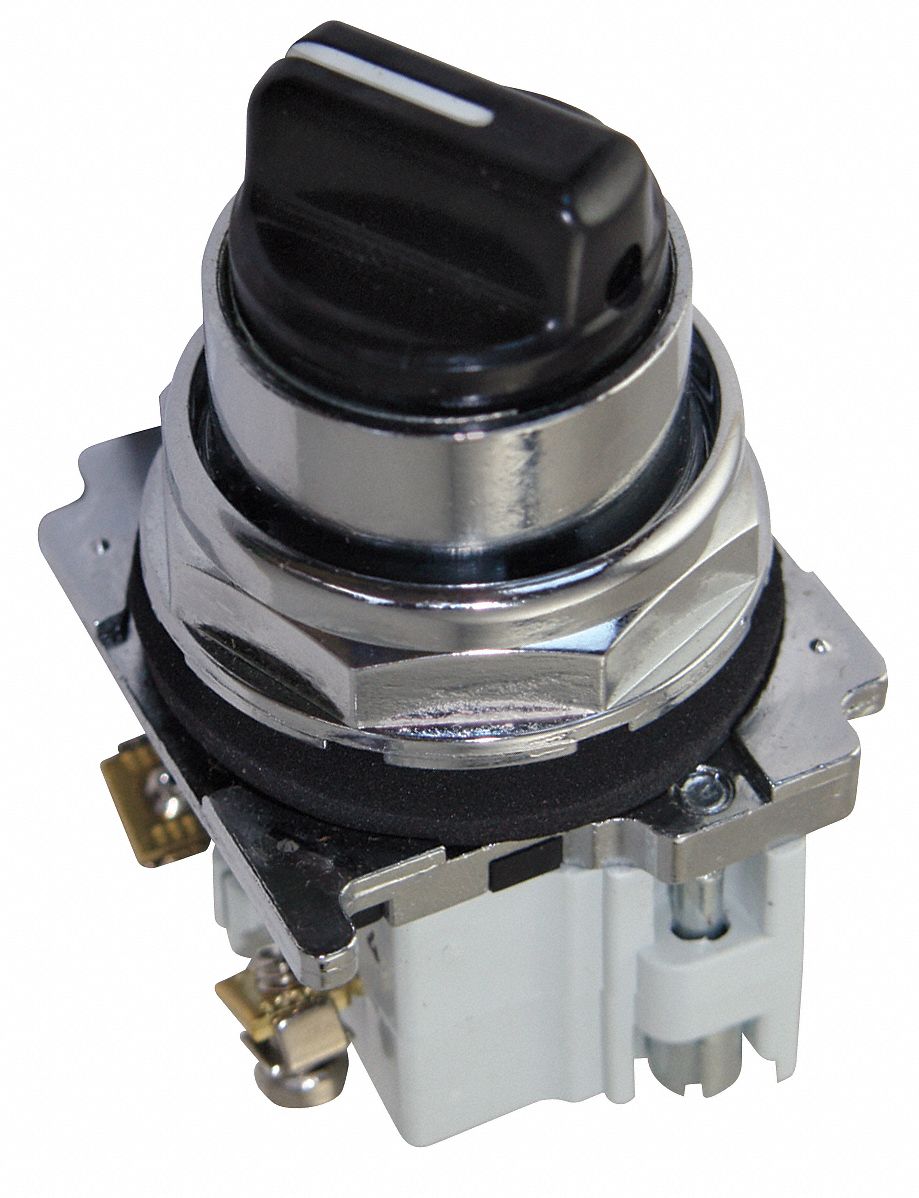

The EATON 10250T21KB is a 30 mm panel-mount selector switch from the 10250T series, featuring a 3-position maintained action with On/Off/On functions. It is equipped with a short-handled polymer knob, a metallic bezel, and is non-illuminated. The switch offers AC contact ratings of 10 A at 600 V and DC contact ratings of 5 A at 250 V, and is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	3
Type	Short Lever, 2NO, Metallic
Brand	EATON
Action	Maintained/Maintained/Maintained
Series	10250T
Positions	3
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	10250T21KB
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
