Eaton 3G-OTH-22944 — Technical Specifications

Name: Eaton 3G-OTH-22944 EATON Surge Protection Device: Single Phase, 120/240V AC, 1200V (L-G, L-L)/700V (L-N)/800V (N-G), 4X (MPN CVX050-240S). Key specifications — Voltage: 120/240V AC; Includes: 3/4 in Conduit Fitting; Max. Continuing Operating Voltage: 150 V AC; Voltage Protection Rating: 800V (N-G); Enclosure Material: Plastic; Max. Surge Current per Mode: 50kA; Brand: EATON.
Brand: Eaton

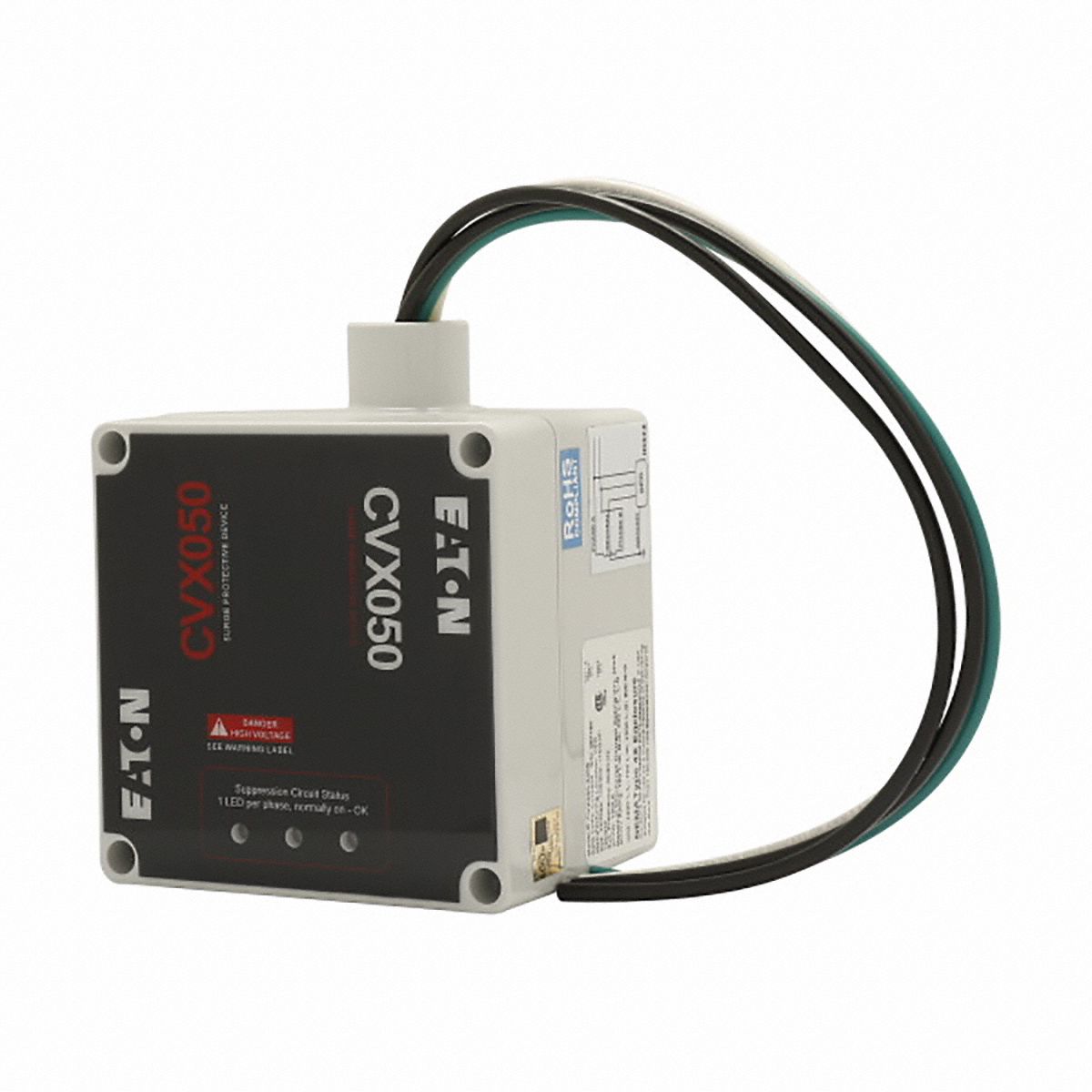

The EATON CVX050-240S is a single-phase Chase-Nipple External-Mount SPD with a plastic enclosure and a 3/4 in conduit fitting. It operates at 120/240V AC with a max. continuing operating voltage of 150 V AC, a voltage protection rating of 800V (N-G), and a max. surge current per mode of 50kA.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120/240V
Type	1200V (L-G, L-L)/700V (L-N)/800V (N-G), 4X
Brand	EATON
Voltage	120/240V AC
Includes	3/4 in Conduit Fitting
Enclosure Material	Plastic
Manufacturer Part Number	CVX050-240S
Voltage Protection Rating	800V (N-G)
Max. Surge Current Per Mode	50kA
Max. Continuing Operating Voltage	150 V AC
