Eaton 3G-OTH-23626 — Technical Specifications

Name: Eaton 3G-OTH-23626 EATON Circuit Breaker: 50 A Amps, 65 kA at 480V AC, Fixed, AB, Std Line and Load Lugs, Std, 2 Poles (MPN PDG12M0050TFFJ). Key specifications — Max. AIR Rating: 65 kA at 480V AC; Instantaneous Trip: Fixed; Phase Connection: AB; Terminal Connection: Standard Line and Load Lugs; Frame Size: 125A/Frame 1.
Brand: Eaton

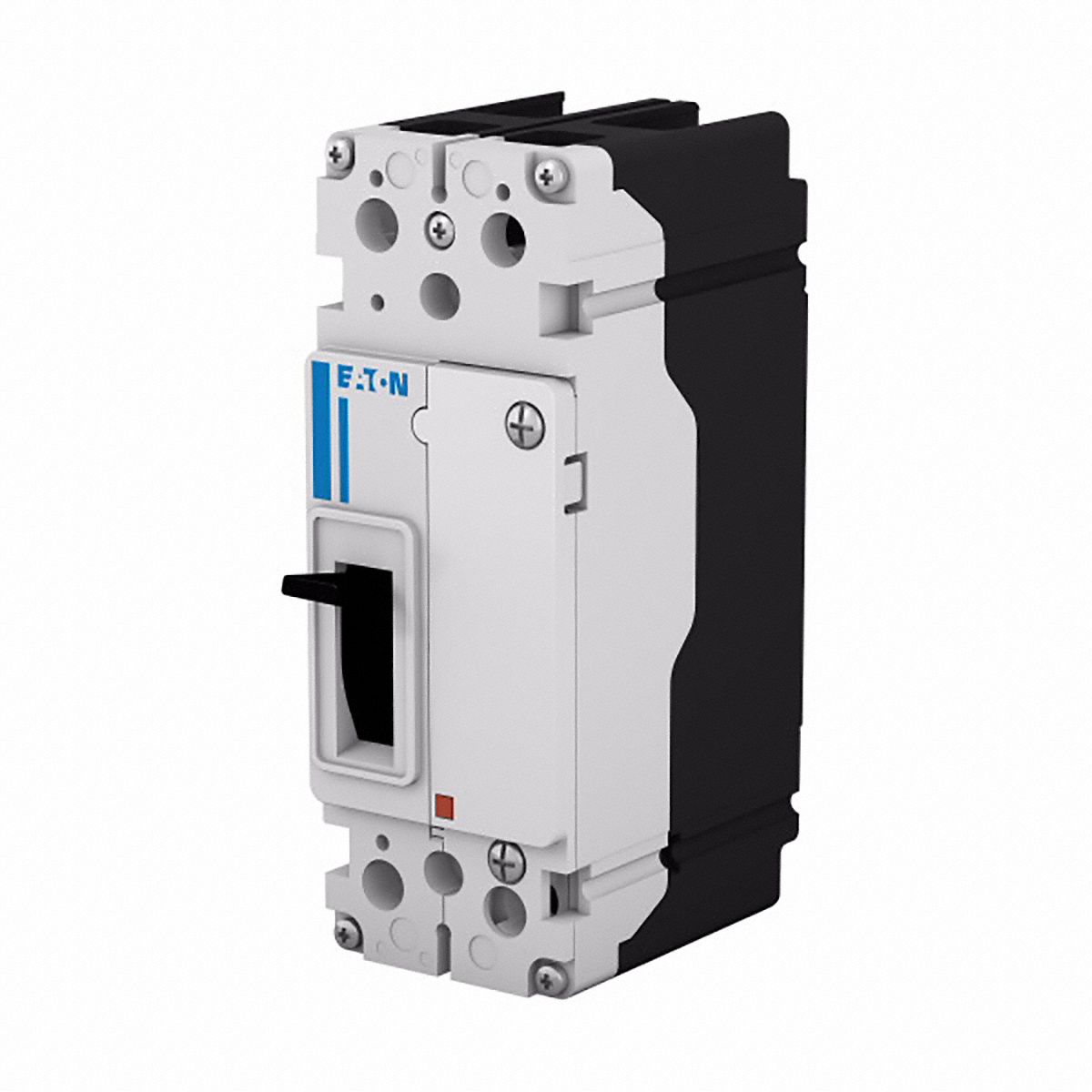

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT35, MPN PDG12M0050TFFJ) is a 50 A rated, 2-pole device with a 125A/Frame 1 frame size. It features a fixed instantaneous trip, a maximum AIR rating of 65 kA at 480V AC, and AB phase connection. Terminal connection is via standard line and load lugs.

View Product & Quote

Technical Specifications

Parameter	Value
Type	65 kA at 480V AC, Fixed, AB, Std Line and Load Lugs, Std
Poles	2
Frame Size	125A/Frame 1
Max. AIR Rating	65 kA at 480V AC
Phase Connection	AB
Instantaneous Trip	Fixed
Terminal Connection	Standard Line and Load Lugs
Manufacturer Part Number	PDG12M0050TFFJ
