Eaton 3G-OTH-43581 — Technical Specifications

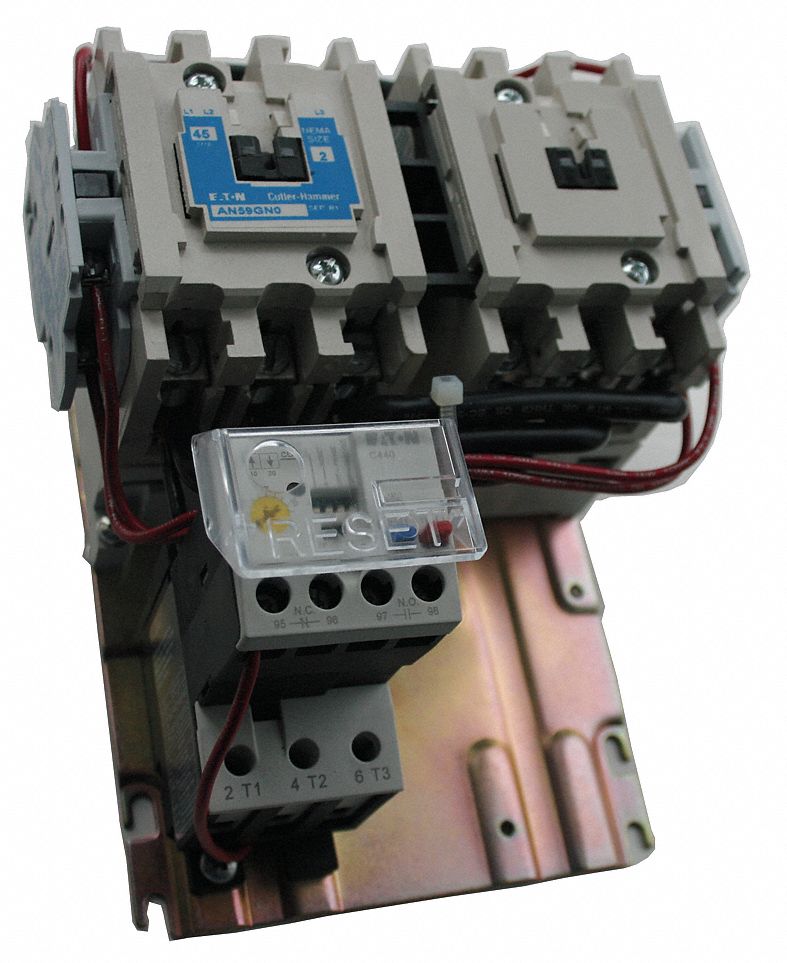

The EATON NEMA Magnetic Motor Starter: Reversing (SKU 6HGT0, MPN AN59GN0T5E020) is a three-phase reversing starter with an electronic overload, rated 45 A at NEMA Size 2. It features a 24V AC coil, a 1NO auxiliary contact, and a pilot light signaling feature. This unit has no operator or operator controls and does not require thermal units.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 2, 45 A |
| Brand | EATON |
| Phase | Three |
| Poles | 3 |
| AC Coil | 24V |
| Operator | None |
| Coil Voltage | 24V AC |
| Operator Controls | None |
| Signaling Features | Pilot Light |
| Auxiliary Contact Form | 1NO |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | AN59GN0T5E020 |
| Auxiliary Contacts Included | 1NO |
