Eaton 3G-OTH-41107 — Technical Specifications

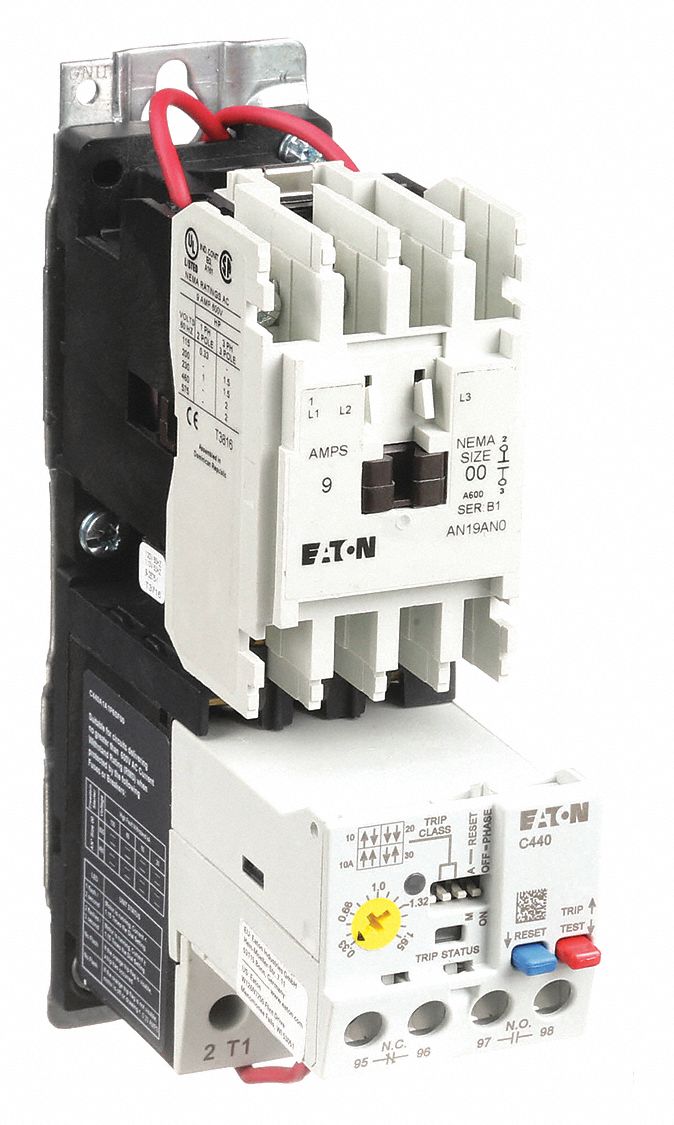

The EATON NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, three poles, NEMA Size 00, and a 9 A rating. It features a 110/120V AC coil, a 1NO auxiliary contact, and a pilot light signaling feature. This unit is designed for three-phase applications and does not require thermal units.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 00, 9 A |
| Brand | EATON |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Operator | None |
| Coil Voltage | 110/120V AC |
| Operator Controls | None |
| Signaling Features | Pilot Light |
| Auxiliary Contact Form | 1NO |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | AN19AN0A5E1P6 |
| Auxiliary Contacts Included | 1NO |
