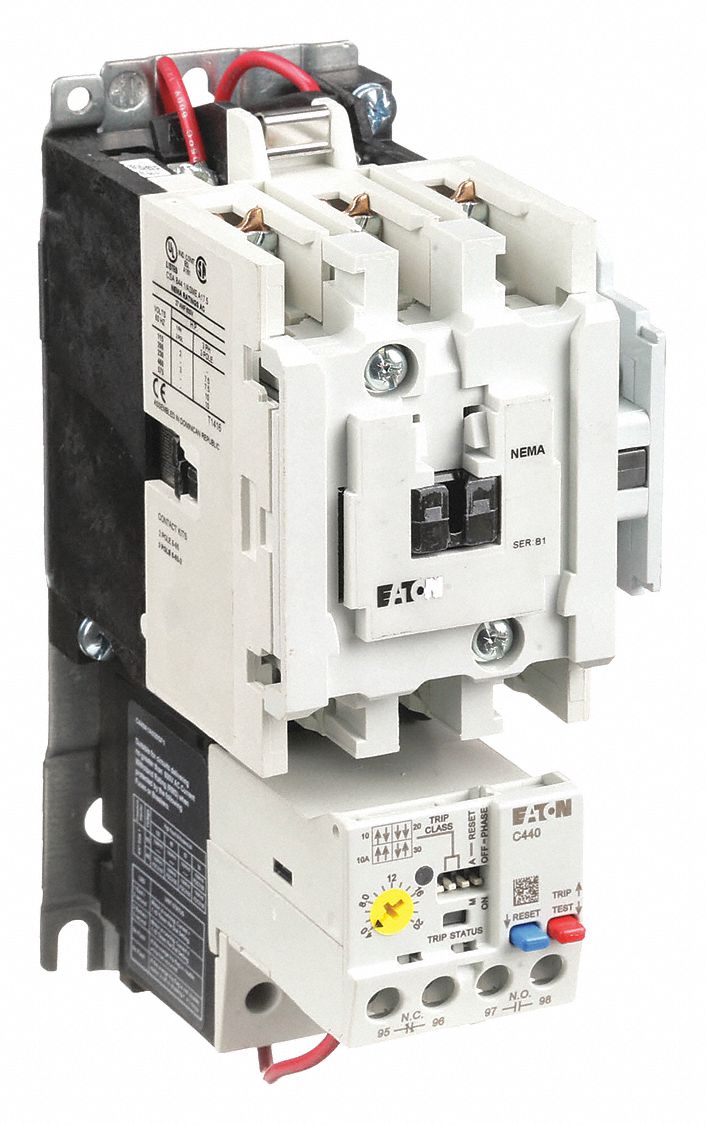

Eaton 3G-OTH-44058 — Technical Specifications
The EATON NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, three poles, NEMA Size 1, and a 27 A rating. It features a 208V AC coil, a 1NO auxiliary contact, and a pilot light for signaling. This three-phase starter requires no thermal units, as electronic overloads are integrated.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 1, 27 A |
| Brand | EATON |
| Phase | Three |
| Poles | 3 |
| AC Coil | 208V |
| Operator | None |
| Coil Voltage | 208V AC |
| Operator Controls | None |
| Signaling Features | Pilot Light |
| Auxiliary Contact Form | 1NO |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | AN19DN0E5E020 |
| Auxiliary Contacts Included | 1NO |
