Extech 3G-OTH-178601 — Technical Specifications

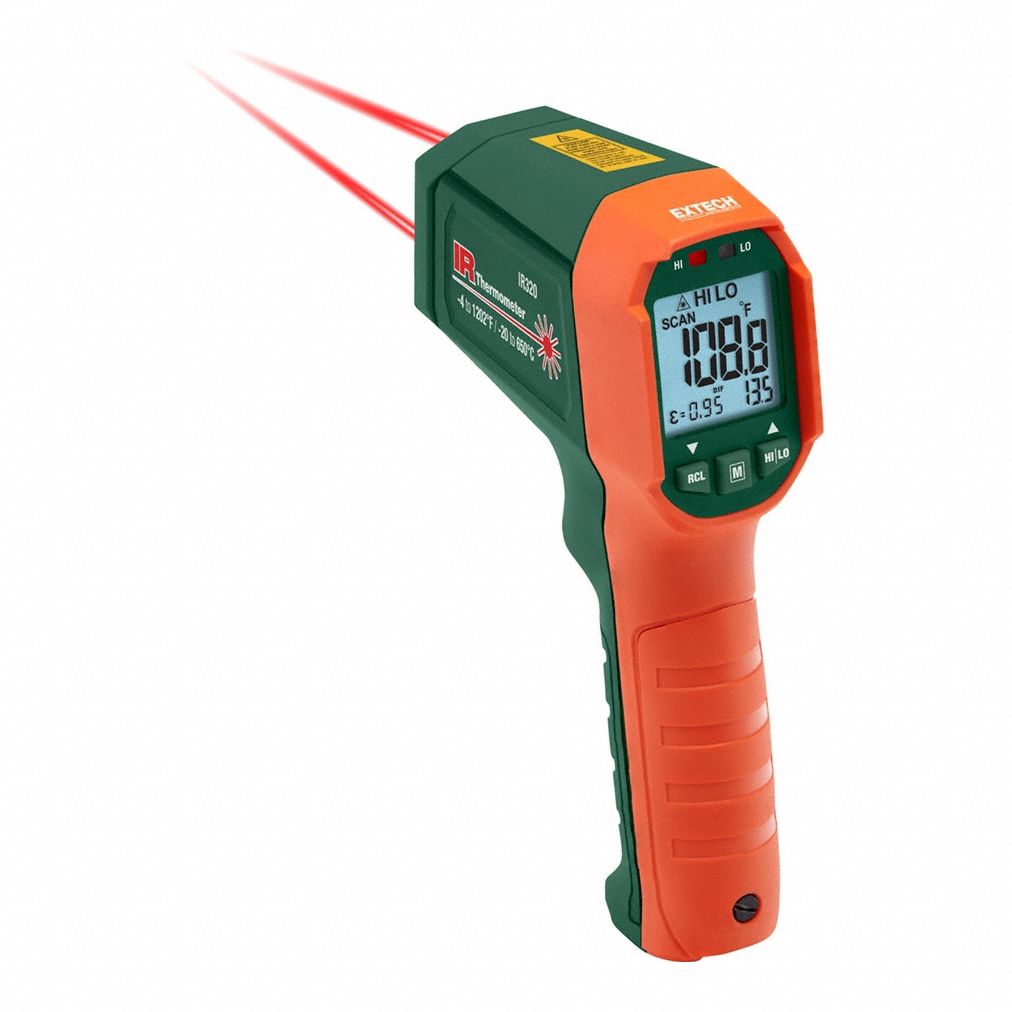

The EXTECH IR320-NIST is a handheld standard infrared thermometer with a mini body style and an LCD digital display. It measures temperatures from -4°F up to 1202°F with an accuracy of +/-1.0% of reading and a resolution of 2°F, featuring adjustable emissivity from 0.10 to 1.00. This CE-certified unit includes a NIST calibration certificate and identifies a 1 in/25 mm diameter target area between two points, with maximum temperature testing and high temperature alerts.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Included, Max Temp/Min Temp, Adj @ 0.10 to 1.00, Mini Body |
| Brand | EXTECH |
| Features | Identifies Target Area Between the Two Points (1 in/25 mm Diameter of Measured Area) |
| Standards | CE |
| Alert Type | Digital Display |
| Accuracy °F | +/-1.0% of Reading |
| Resolution °F | 2°F |
| Max. Emissivity | 1.00 |
| Min. Emissivity | 0.10 |
| Body Style - NEW | Mini |
| Testing Functions | Maximum Temperature |
| Temperature Alerts | High Temperature |
| Mounting Style - NEW | Handheld Only |
| Intrinsic Safety - NEW | Not Specified Intrinsically Safe |
| Manufacturer Part Number | IR320-NIST |
| Includes Work Light - NEW | No Work Light Included |
| Max. Temperature Measured | Up to 1202° F |
| Min. Temperature Measured | -4° |
| Digital Display Screen Type | LCD |
| Calibration Certificate Type | NIST |
