Field Controls 3G-OTH-78228 — Technical Specifications

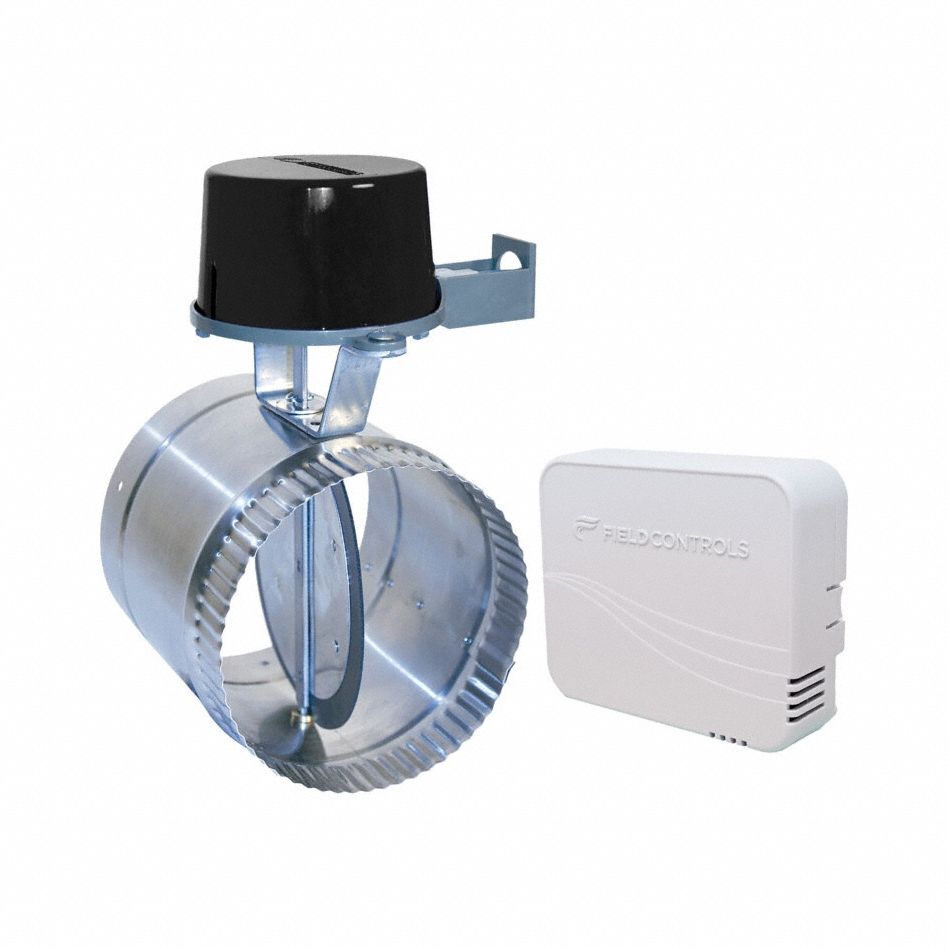

Name: Field Controls 3G-OTH-78228 Motorized Damper: For 9 in Dia, 9 1/8 in L, 13 7/8 in H, 13 7/8 in W, Crimped/Slip-Over, Single (MPN FCD-9). Key specifications — Nameplate Voltage: 24V AC; Blade Seal Material: Rubber; Blade Type: Flat Blade; Brand: FIELD CONTROLS; Maximum Air Velocity: 1,000 fpm; Switch Action: Normally Closed; Includes: Mounting Packet Containing Sheet Metal Screws.
Brand: Field Controls

The FIELD CONTROLS FCD-9 is a motorized fresh air intake damper for 9-inch diameter ducts, featuring a flat blade with a rubber seal and a normally closed switch action. It operates on 24V AC and supports a maximum air velocity of 1,000 fpm. The unit includes a mounting packet with sheet metal screws.

View Product & Quote

Technical Specifications

Parameter	Value
H	13 7/8 in
Type	9 1/8 in L, 13 7/8 in W, Crimped/Slip-Over, Single
Brand	FIELD CONTROLS
Includes	Mounting Packet Containing Sheet Metal Screws
Blade Type	Flat Blade
Switch Action	Normally Closed
Nameplate Voltage	24V AC
Blade Seal Material	Rubber
Maximum Air Velocity	1,000 fpm
Manufacturer Part Number	FCD-9
