Field Controls 3G-OTH-78254 — Technical Specifications

Name: Field Controls 3G-OTH-78254 Motorized Damper: For 8 in Dia, 8 1/8 in L, 12 7/8 in H, 12 7/8 in W, Crimped/Slip-Over, Single (MPN FAD-8). Key specifications — Nameplate Voltage: 24V AC; Blade Seal Material: Rubber; Blade Type: Flat Blade; Brand: FIELD CONTROLS; Maximum Air Velocity: 1,000 fpm; Switch Action: Normally Closed; Includes: 3-Wire Harness with Modular Damper Connector.
Brand: Field Controls

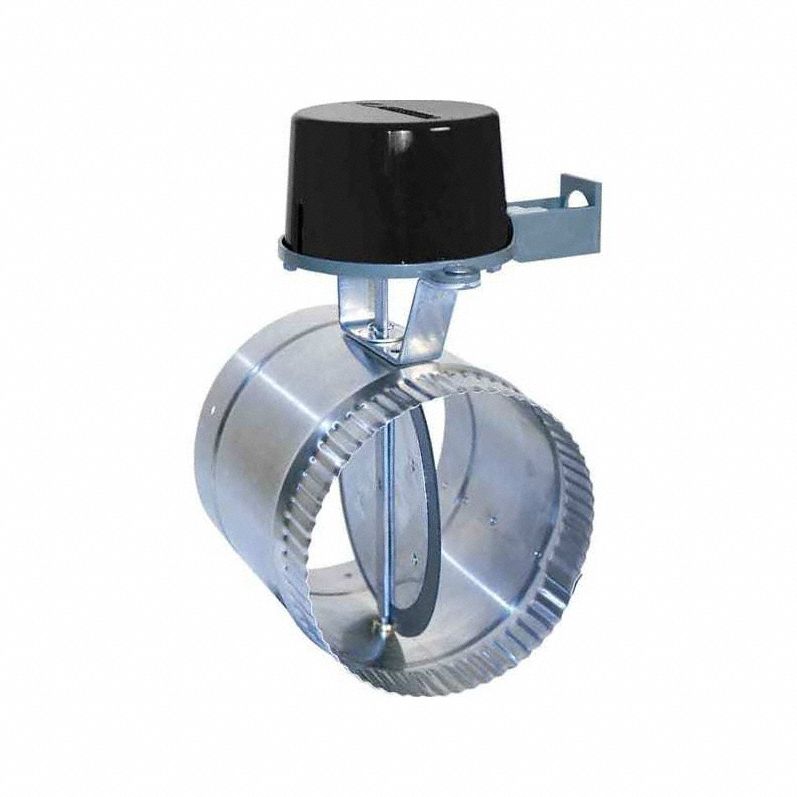

The FIELD CONTROLS FAD-8 is a motorized fresh air intake damper for 8-inch diameter ducts, featuring a flat blade with rubber seal and a normally closed switch action. It operates on 24V AC and supports a maximum air velocity of 1,000 fpm. The unit includes a 3-wire harness with modular damper connector and has a crimped/slip-over design with dimensions of 8 1/8 in L, 12 7/8 in H, and 12 7/8 in W.

View Product & Quote

Technical Specifications

Parameter	Value
H	12 7/8 in
Type	8 1/8 in L, 12 7/8 in W, Crimped/Slip-Over, Single
Brand	FIELD CONTROLS
Includes	3-Wire Harness with Modular Damper Connector
Blade Type	Flat Blade
Switch Action	Normally Closed
Nameplate Voltage	24V AC
Blade Seal Material	Rubber
Maximum Air Velocity	1,000 fpm
Manufacturer Part Number	FAD-8
