Flowserve 3G-OTH-94794 — Technical Specifications

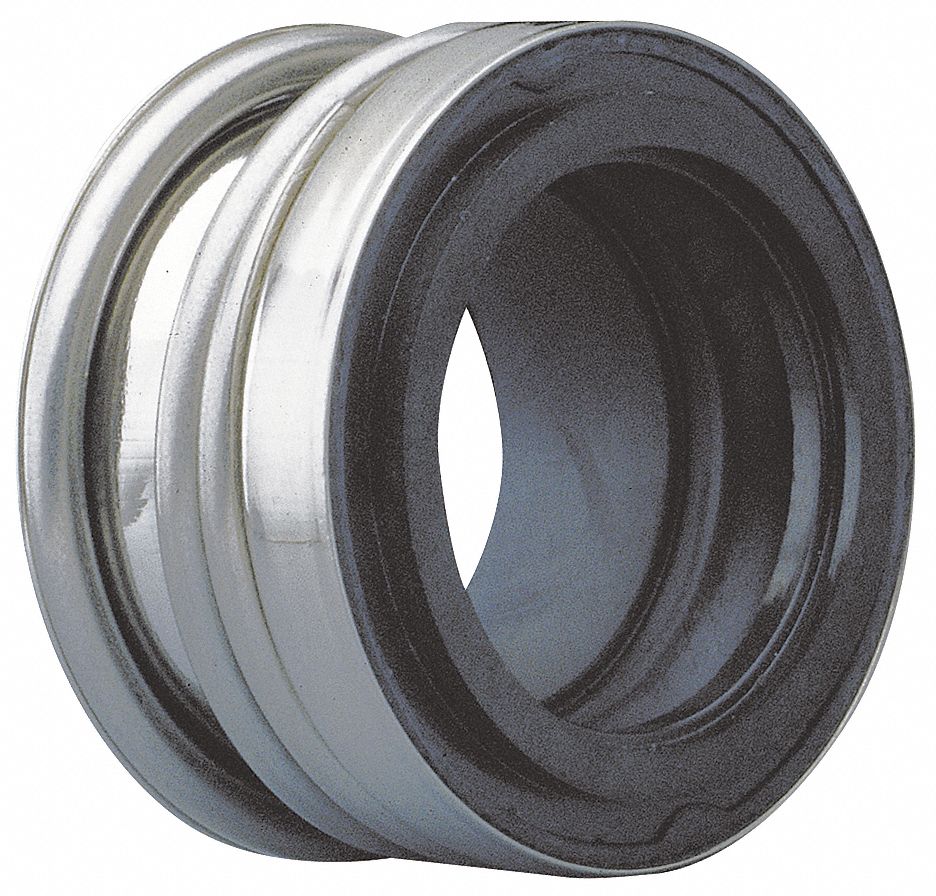

The FLOWSERVE Unitized Rotary Replacement Pump Shaft Seal is a mechanical shaft seal with a Type 16 designation, designed for a 3/4-inch shaft diameter. It features a single stainless steel spring and a rubber gasket material. This seal replaces Grainger Seal 5P412 and is identified by manufacturer part number 16-075-03.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | : Mechanical Shaft Seal, 16 |
| Brand | FLOWSERVE |
| Shaft Dia | 3/4 in |
| Spring Type | Single Spring |
| Gasket Material | Rubber |
| Spring Material | Stainless Steel |
| Seal Type Designation | 16 |
| Replaces Grainger Seal | 5P412 |
| Manufacturer Part Number | 16-075-03 |
