Gates 3G-OTH-114715 — Technical Specifications

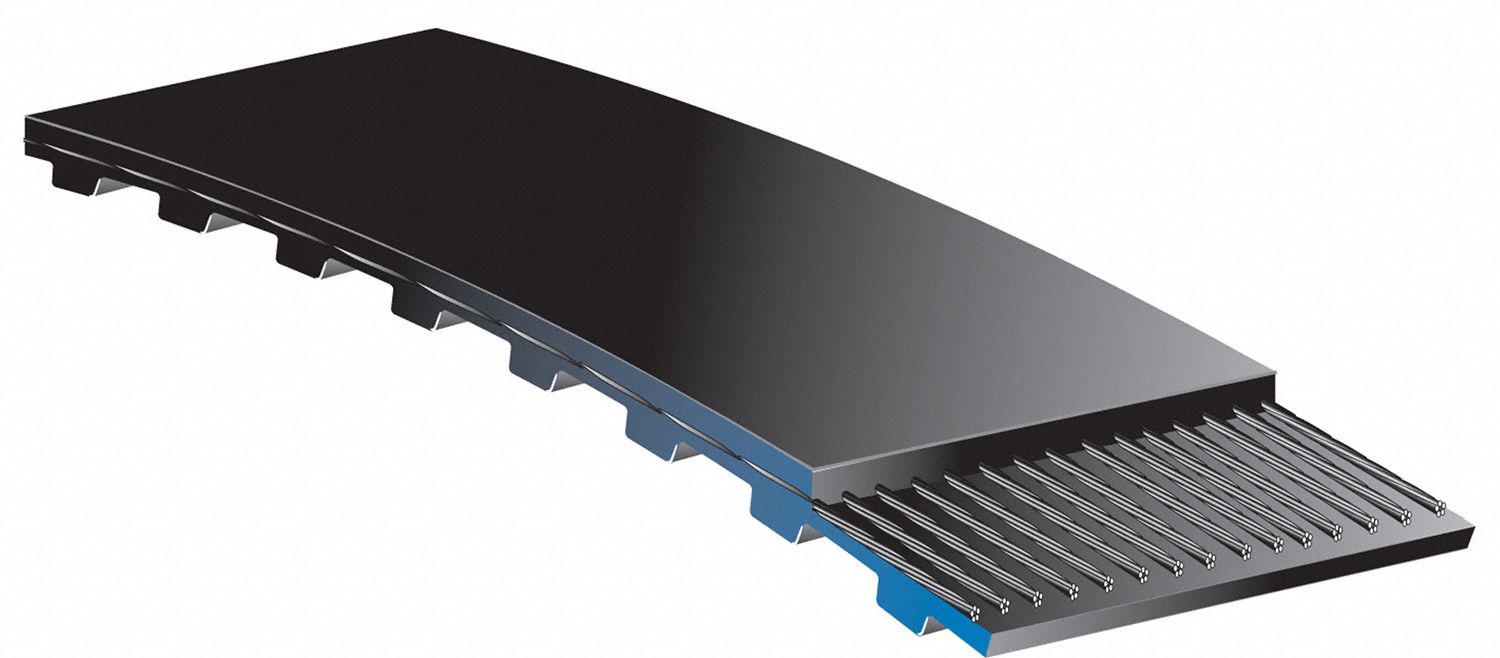

The GATES PowerGrip® Timing Belt: One Side is a closed-loop, H Section trapezoidal timing belt with a 0.5 in pitch, 1 1/2 in top width, and 228 teeth, identified by manufacturer part number 1140H150. This belt features a trapezoidal tooth profile and is designed for synchronous power transmission applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PowerGrip®, 1140H150, H |
| Brand | GATES |
| Pitch | 0.5 in |
| Teeth | 228 |
| Top Wd | 1 1/2 in |
| Belt Series | PowerGrip® |
| Length Type | Closed Loop |
| Tooth Profile | Trapezoidal |
| Industry Number | 1140H150 |
| Manufacturer Part Number | 1140H150 |
