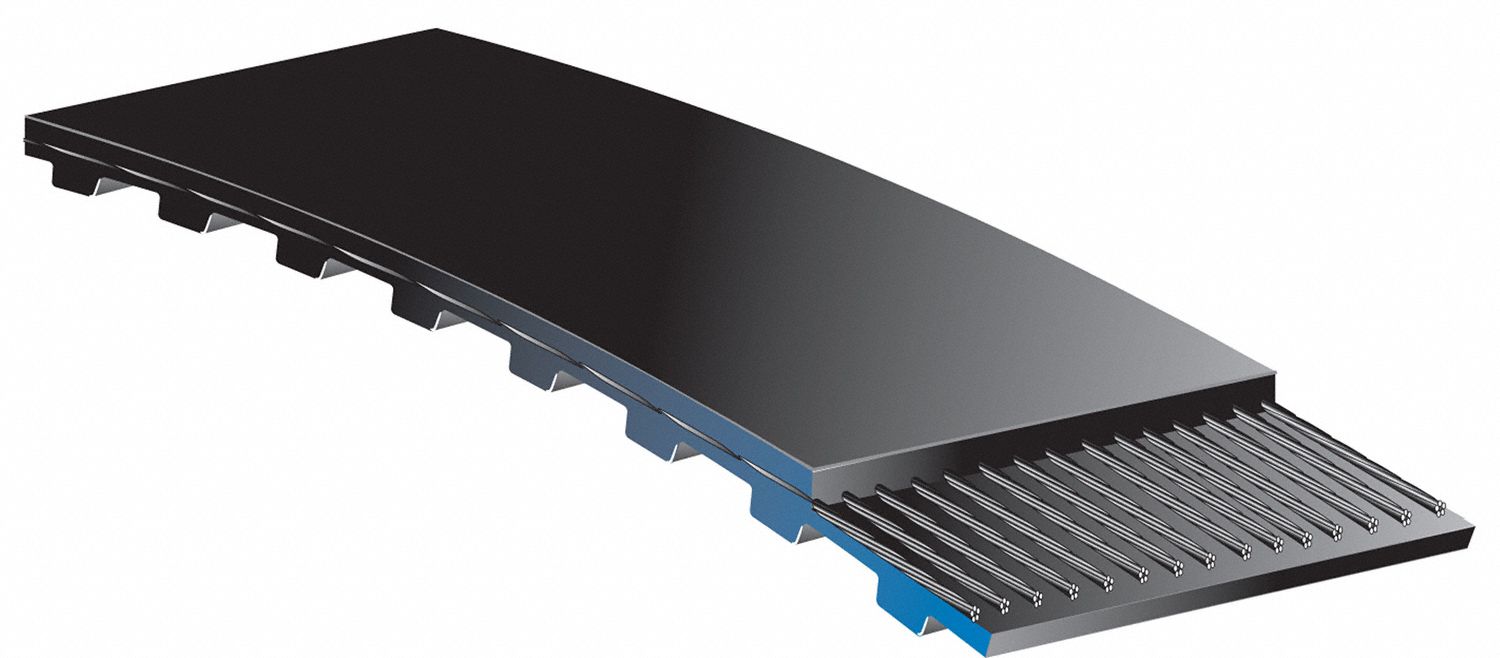

Gates 3G-OTH-106470 — Technical Specifications
The GATES Timing Belt: One Side is an MXL Section Trapezoidal Timing Belt from the PowerGrip® series. It features a closed-loop length type, a trapezoidal tooth profile, and a 0.08 in pitch with a 1/8 in top width. This belt has 424 teeth and is identified by the manufacturer part number 339MXL012.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PowerGrip®, 339MXL012, MXL |
| Brand | GATES |
| Pitch | 0.08 in |
| Teeth | 424 |
| Top Wd | 1/8 in |
| Belt Series | PowerGrip® |
| Length Type | Closed Loop |
| Tooth Profile | Trapezoidal |
| Industry Number | 339MXL012 |
| Manufacturer Part Number | 339MXL012 |
