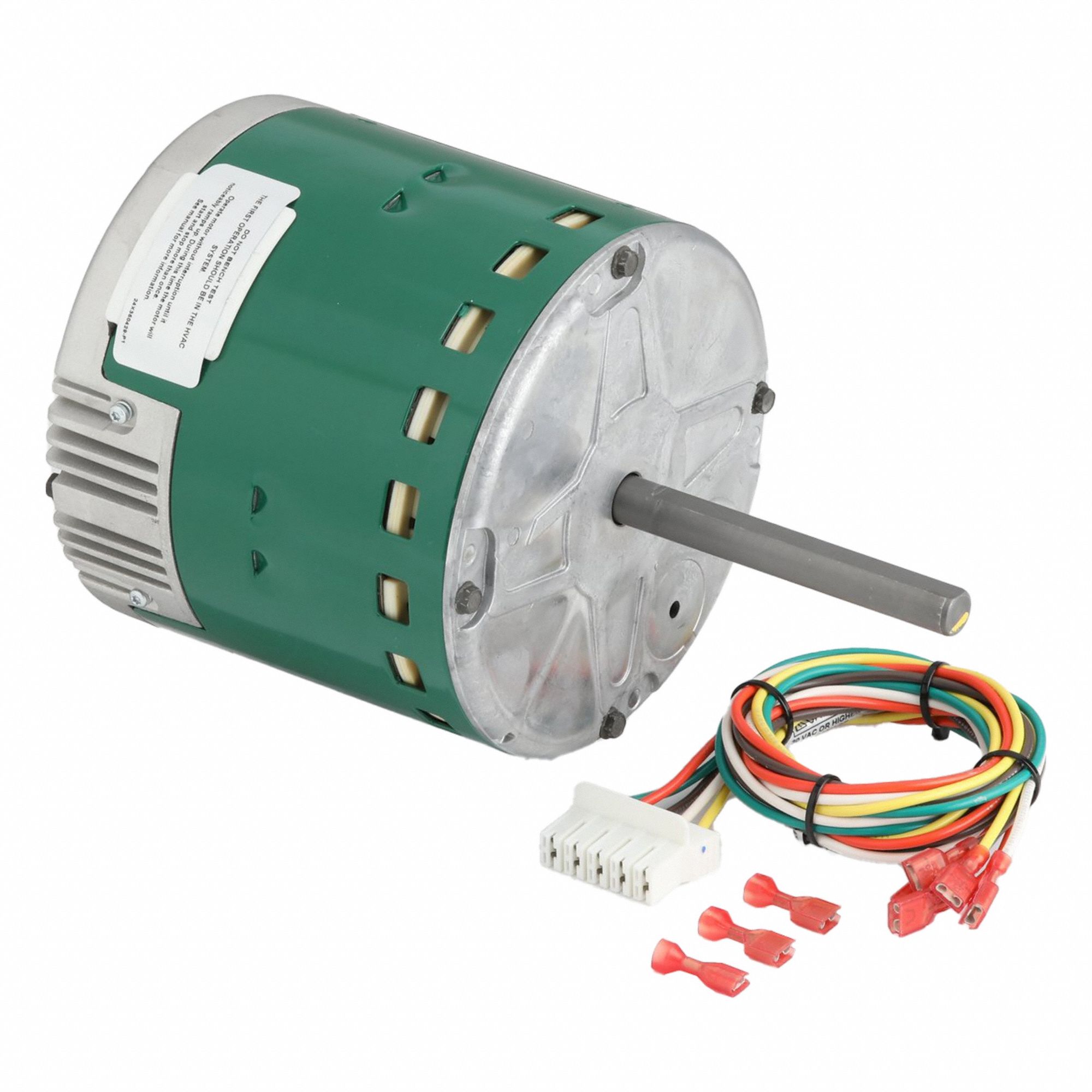

Genteq 3G-OTH-54305 — Technical Specifications
The GENTEQ Evergreen® CM is a 48-frame, constant-torque ECM direct-drive blower motor (MPN 6703) rated at 1/3 hp, 250 W, 1,075 RPM, and 2.8/2.6 A full-load amps at 208-230/277V AC, 60 Hz. It features multi-speed operation with five taps at 24 VAC and is compatible with a Building Management System low-voltage external controller. The motor includes voltage plugs and has an Open Air Over (OAO) enclosure.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Belly Band, ECM, Open Air Over |
| Brand | GENTEQ |
| Features | Multi-Speed (5 Taps @ 24vac) |
| Includes | Voltage Plugs |
| Frame Size | 48 |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 1/3 hp |
| Horsepower/Wattage | 1/3 hp250 W |
| External Control Type | Building Management System Low Voltage Controller |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 2.8/2.6 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6703 |
| Nameplate Voltage @ 60 Hz | 208-230/277V AC |
| External Controller Compatible | Yes |
| Compatible With External Controller | External Control Compatible |
