Grote 3G-OTH-510354 — Technical Specifications

Name: Grote 3G-OTH-510354 GROTE Flashing Beacon: Flashing Beacon, Amber, 6 3/8 in Overall Wd, 6 11/16 in Overall Ht, LED (MPN 78063). Key specifications — Operating Voltage: 12 to 24V DC; Number of Flash Patterns: 26; Electrical Connection: Blunt Cut Wires; Mount Type: Pipe; Brand: GROTE; Shape: Round; Lighting SAE Class Rating: SAE Class 2.
Brand: Grote

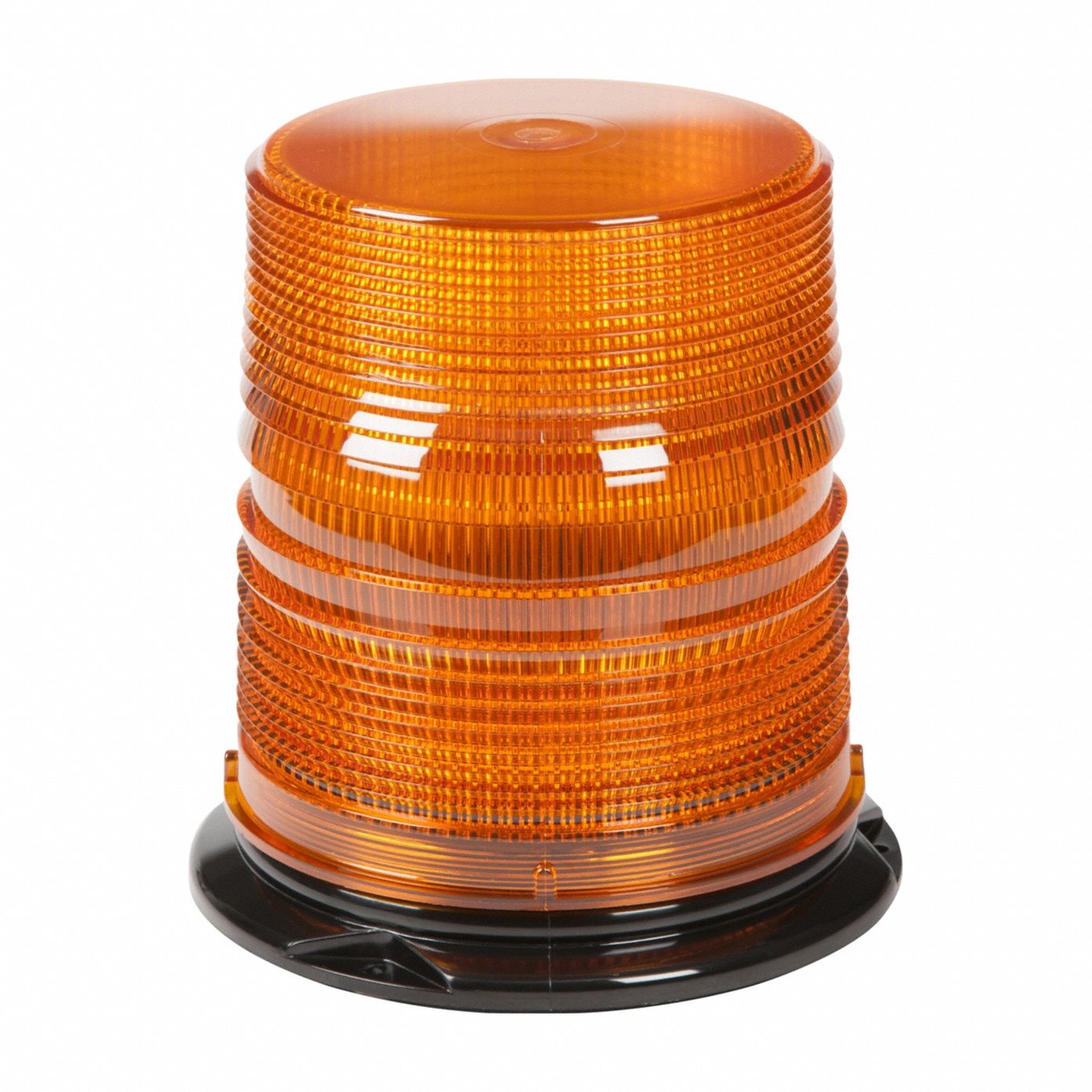

The GROTE Flashing Beacon (MPN 78063) is an amber, LED vehicle beacon with a round shape and pipe mount. It operates on 12 to 24V DC, offers 26 flash patterns, and carries an SAE Class 2 lighting rating. Electrical connection is via blunt cut wires, with overall dimensions of 6 3/8 in width and 6 11/16 in height.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Amber, LED
Brand	GROTE
Shape	Round
Mount Type	Pipe
Overall Ht	6 11/16 in
Overall Wd	6 3/8 in
Operating Voltage	12 to 24V DC
Electrical Connection	Blunt Cut Wires
Manufacturer Part Number	78063
Number Of Flash Patterns	26
Lighting SAE Class Rating	SAE Class 2
