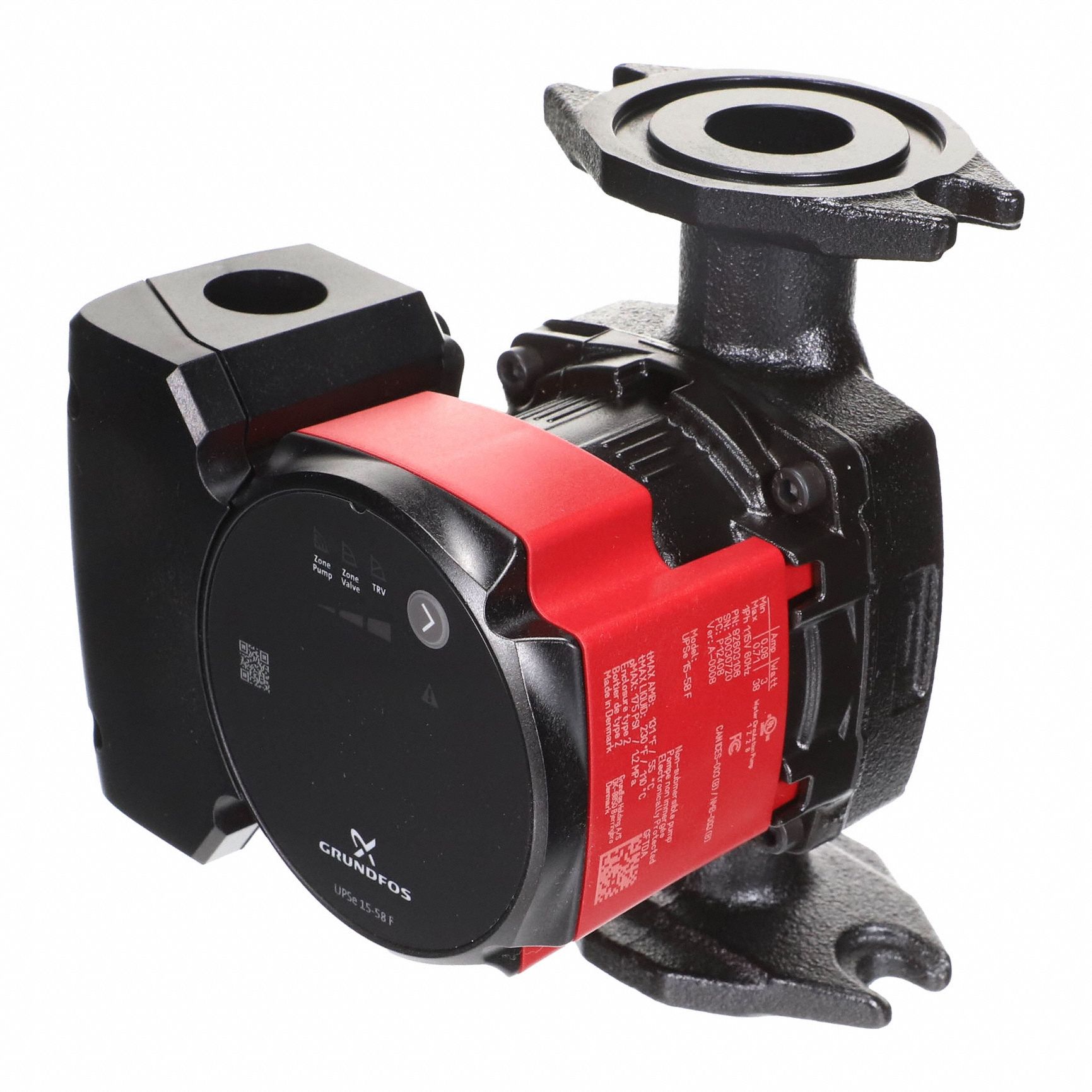

Grundfos 3G-OTH-83683 — Technical Specifications

Name: Grundfos 3G-OTH-83683 Circulating Pump: 1/8 hp HP, 115V AC, Cast Iron, 1, 14 gpm, 19 ft Max. Head, 6 1/2 in Face to Face (MPN 92603106). Key specifications — Nameplate Voltage: 115V AC; Connection Type: Flange; Brand: GRUNDFOS; Includes Volute: Volute Included; Efficiency: High Efficiency; System Type: Potable Water.
Brand: Grundfos

The Grundfos Circulating Pump (1/8 hp HP) is a general-purpose inline circulator pump designed for potable water systems. It features a high-efficiency design, a cast iron volute, and flange connections, operating at 115V AC with a flow rate of 14 gpm and a maximum head of 19 ft. The pump has a 6 1/2 in face-to-face dimension (MPN 92603106).

View Product & Quote

Technical Specifications

Parameter	Value
AC	115V
Type	Cast Iron, 1, 14 gpm, 6 1/2 in Face to Face
Brand	GRUNDFOS
Max. Head	19 ft
Efficiency	High Efficiency
System Type	Potable Water
Connection Type	Flange
Includes Volute	Volute Included
Nameplate Voltage	115V AC
Manufacturer Part Number	92603106
