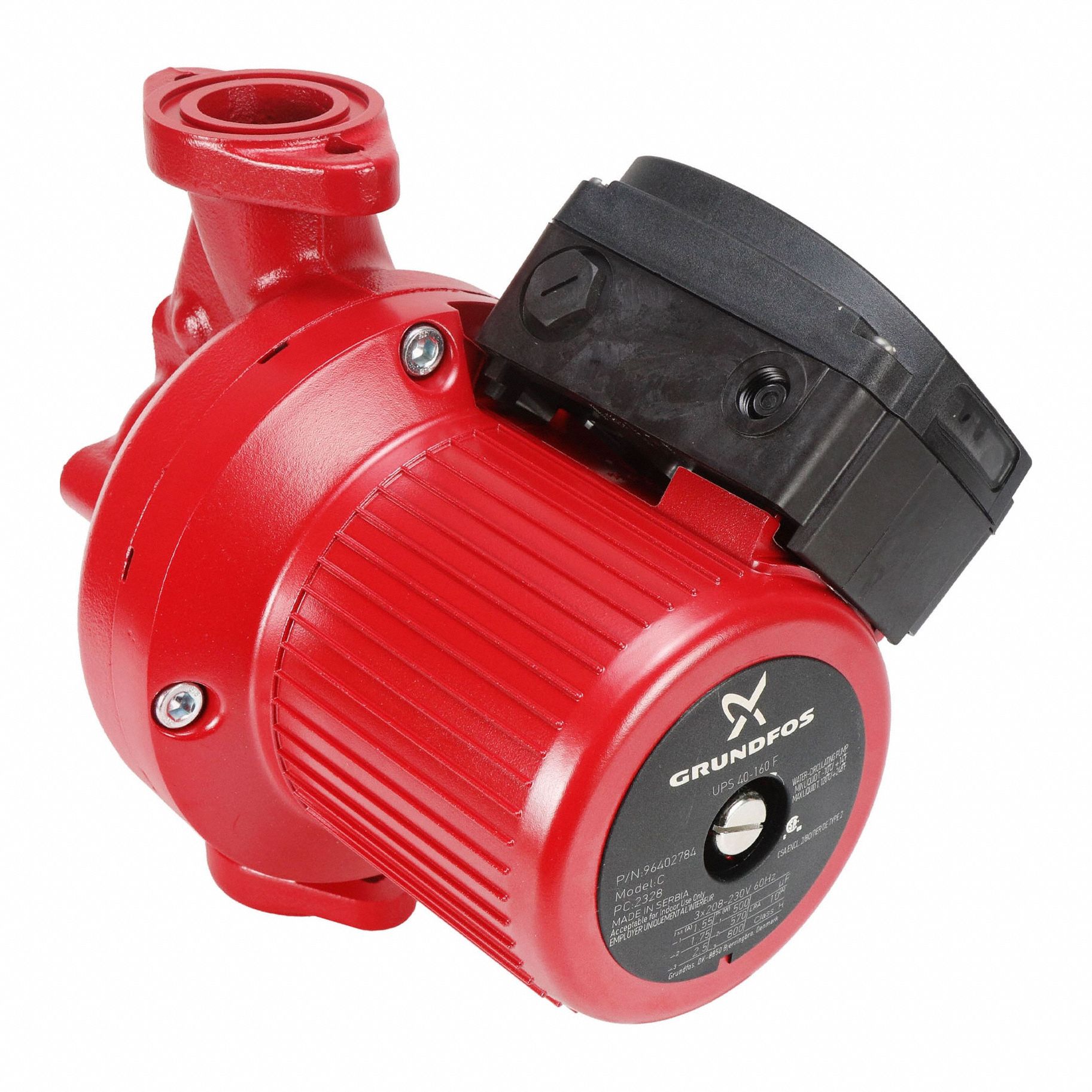

Grundfos 3G-OTH-84121 — Technical Specifications
The Grundfos Circulating Pump (3/4 hp HP) is a general-purpose inline circulator pump designed for potable water systems. It features a standard efficiency motor with a nameplate voltage of 208-230V AC, flange connections, and includes a volute. The pump offers a maximum head of 53 ft and a face-to-face dimension of 11 1/2 in.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 208-230V |
| Type | Cast Iron, 3, 11 1/2 in Face to Face |
| Brand | GRUNDFOS |
| Max. Head | 53 ft |
| Efficiency | Standard Efficiency |
| System Type | Potable Water |
| Connection Type | Flange |
| Includes Volute | Volute Included |
| Nameplate Voltage | 208-230V AC |
| Manufacturer Part Number | 96402784 |
