Harting 3G-OTH-16988 — Technical Specifications

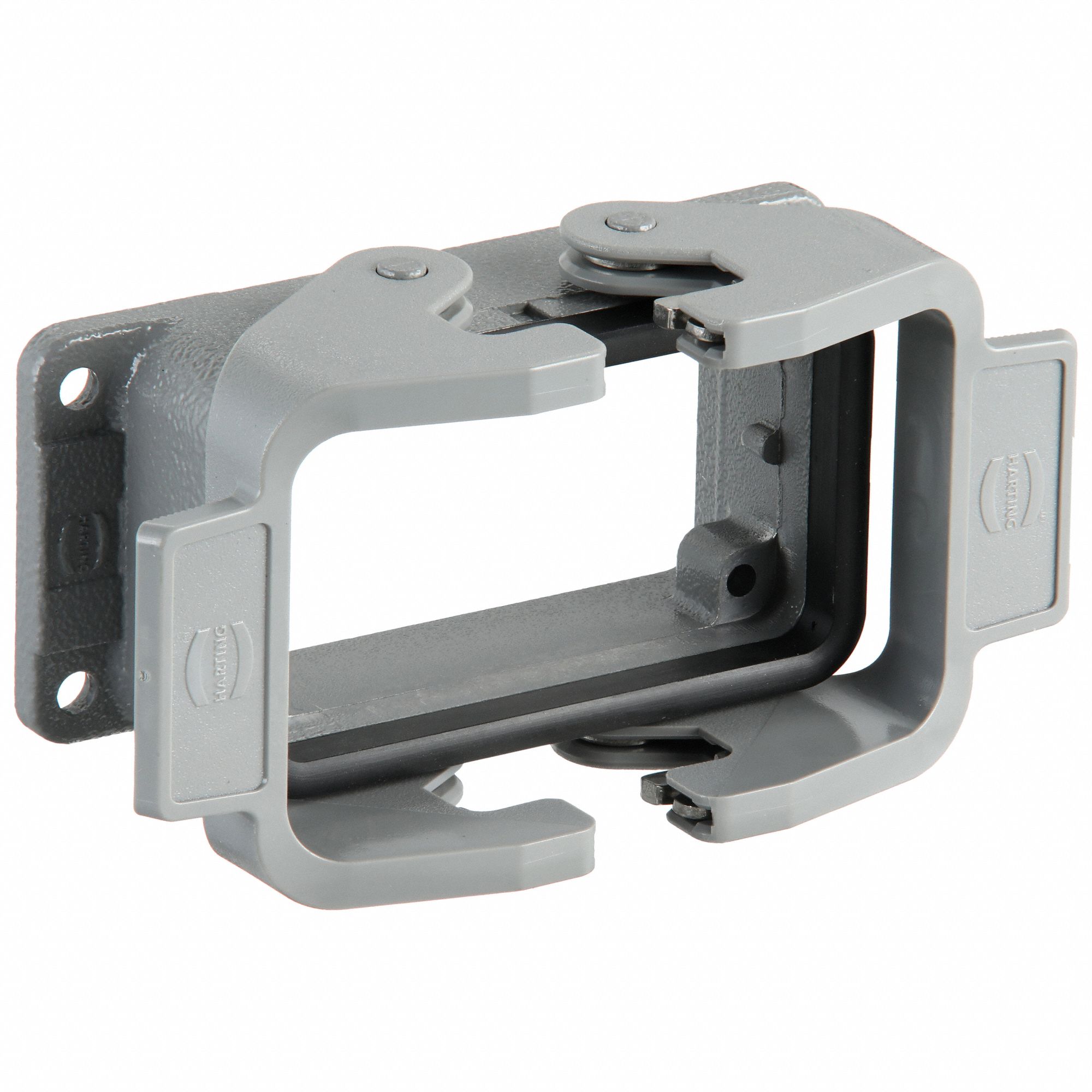

Name: Harting 3G-OTH-16988 HARTING Rectangular Connector Housing: Size 10 B, Bulkhead Mount, Gray, Aluminum Die-Cast, IP65 (MPN 09300100301). Key specifications — IP Rating: IP65; Size Designation: 10 B; Seal Material: NBR; Locking Type: Dual Lever; Brand: HARTING; Primary Material: Aluminum; Operating Temperature Range: -40 to 125 Degrees C.
Brand: Harting

The HARTING Rectangular Connector Housing, Size 10 B, is a bulkhead-mount rectangular connector housing made of aluminum die-cast. It features an IP65 rating, a dual-lever locking type, an NBR seal material, and an operating temperature range of -40 to 125 Degrees C.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Bulkhead Mount, Gray, Aluminum Die-Cast, IP65
Brand	HARTING
IP Rating	IP65
Locking Type	Dual Lever
Seal Material	NBR
Primary Material	Aluminum
Size Designation	10 B
Manufacturer Part Number	09300100301
Operating Temperature Range	-40 to 125 Degrees C
