Harting 3G-OTH-13930 — Technical Specifications

Name: Harting 3G-OTH-13930 HARTING Rectangular Connector Housing: Size 3 A, Surface Mount, Gray, Zinc Die-Cast, IP44/IP65/IP67 (MPN 19200031252). Key specifications — IP Rating: IP65; Size Designation: 3 A; Cable Entry Thread Size: M20; Seal Material: NBR; Locking Type: Single Lever; Brand: HARTING; Primary Material: Zinc; Operating Temperature Range: -40 to 125 Degrees C.
Brand: Harting

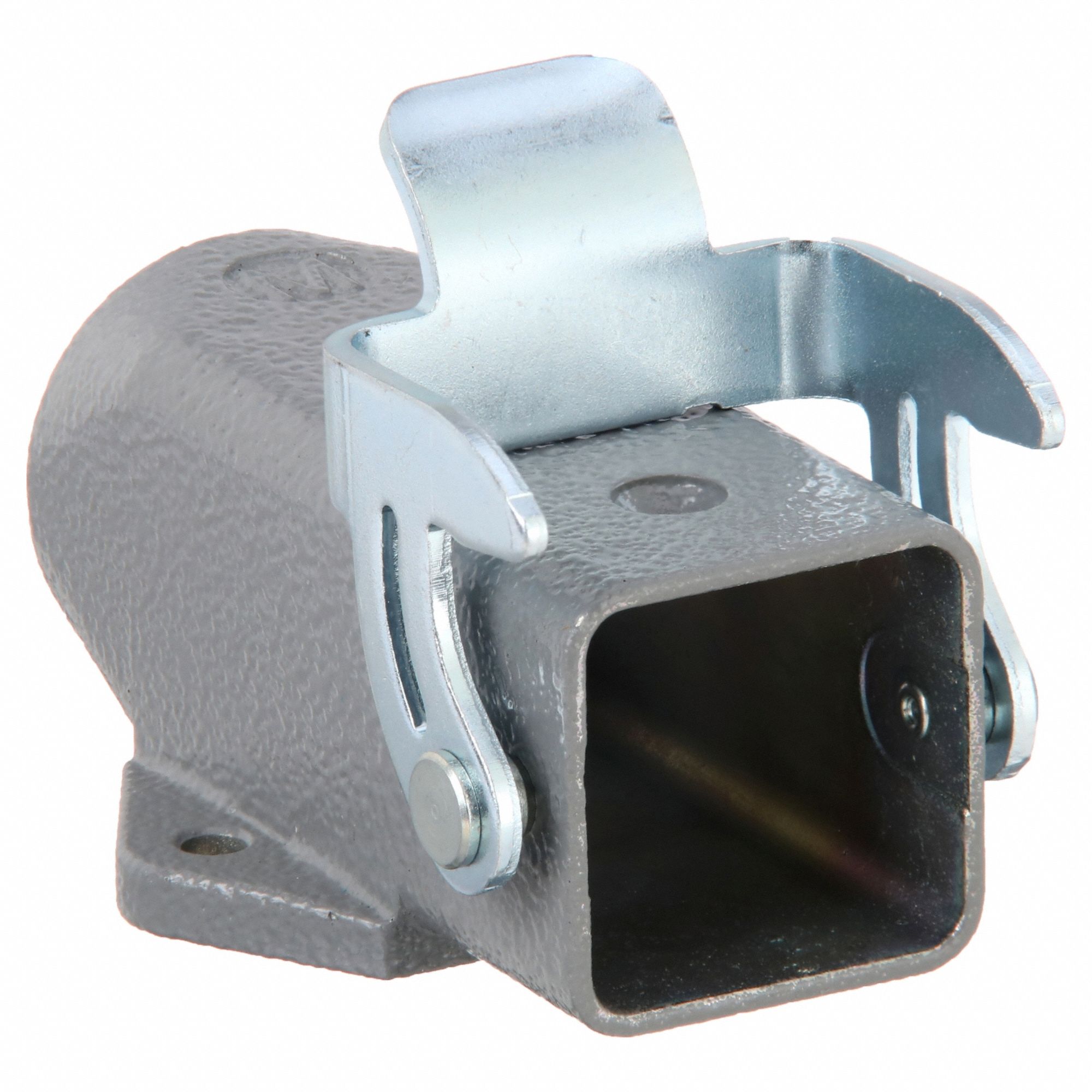

The HARTING Rectangular Connector Housing, Size 3 A, is a surface-mount connector housing made of zinc with an NBR seal. It features a single-entry design with a single-lever locking mechanism and an M20 cable entry thread size. Rated IP65, it operates in temperatures from -40 to 125 Degrees C.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Surface Mount, Gray, Zinc Die-Cast, IP44/IP65/IP67
Brand	HARTING
IP Rating	IP65
Entry Type	Single-Entry
Locking Type	Single Lever
Seal Material	NBR
Primary Material	Zinc
Size Designation	3 A
Cable Entry Thread Size	M20
Manufacturer Part Number	19200031252
Operating Temperature Range	-40 to 125 Degrees C
