Harting 3G-OTH-18383 — Technical Specifications

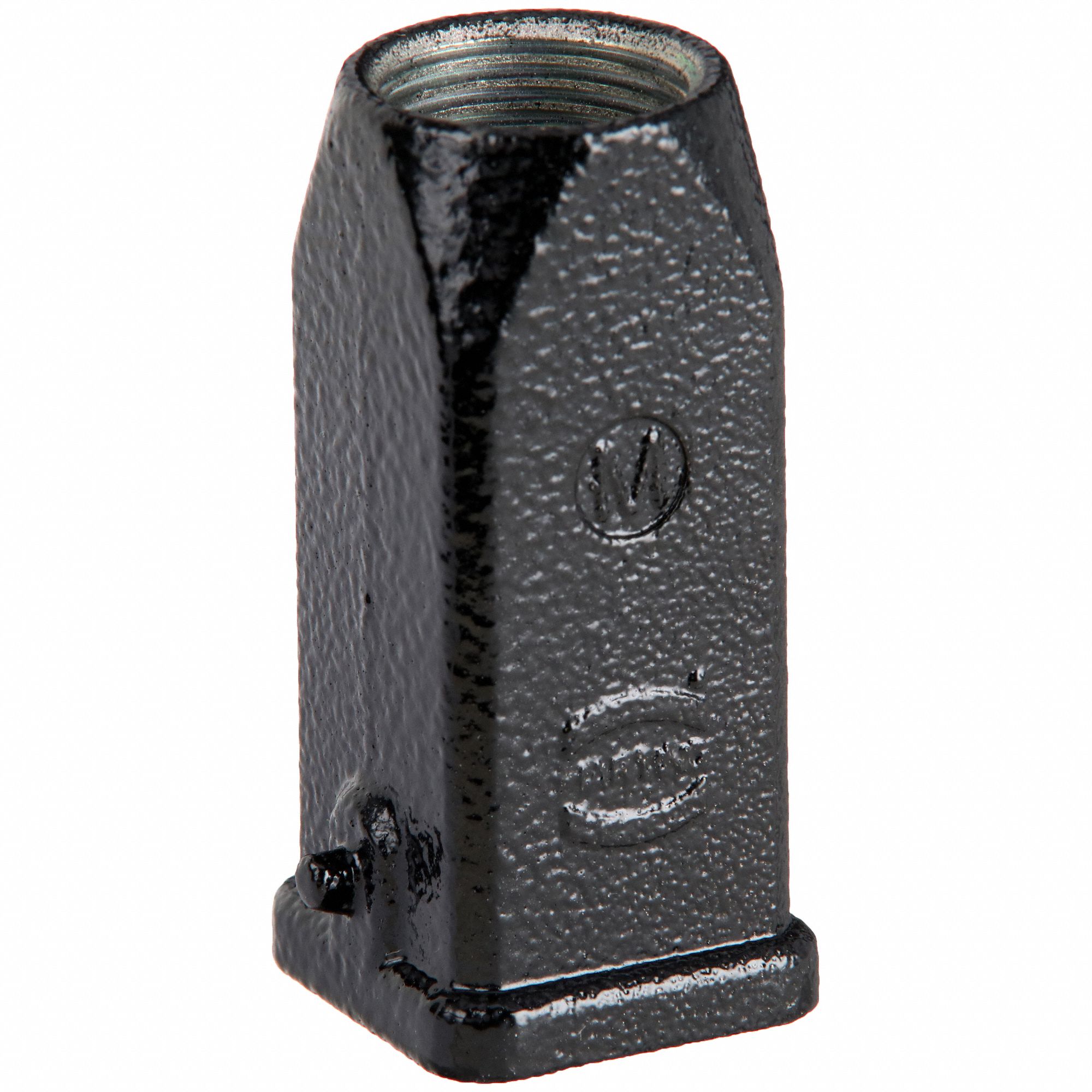

The HARTING M20 Rectangular Connector Hood, Size 3 A, is a single-entry hood for rectangular connectors with an M20 cable entry thread. It features an IP65 rating, a zinc primary material, an FPM seal, and a single-lever locking mechanism. This hood operates within a temperature range of -40 to 125 Degrees C.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Top, Single-Entry, M20 Cable Entry, Zinc Die-Cast |
| Brand | HARTING |
| IP Rating | IP65 |
| Entry Type | Single-Entry |
| Locking Type | Single Lever |
| Seal Material | FPM |
| Primary Material | Zinc |
| Size Designation | 3 A |
| Cable Entry Thread Size | M20 |
| Manufacturer Part Number | 19370031440 |
| Operating Temperature Range | -40 to 125 Degrees C |
