Harting 3G-OTH-11576 — Technical Specifications

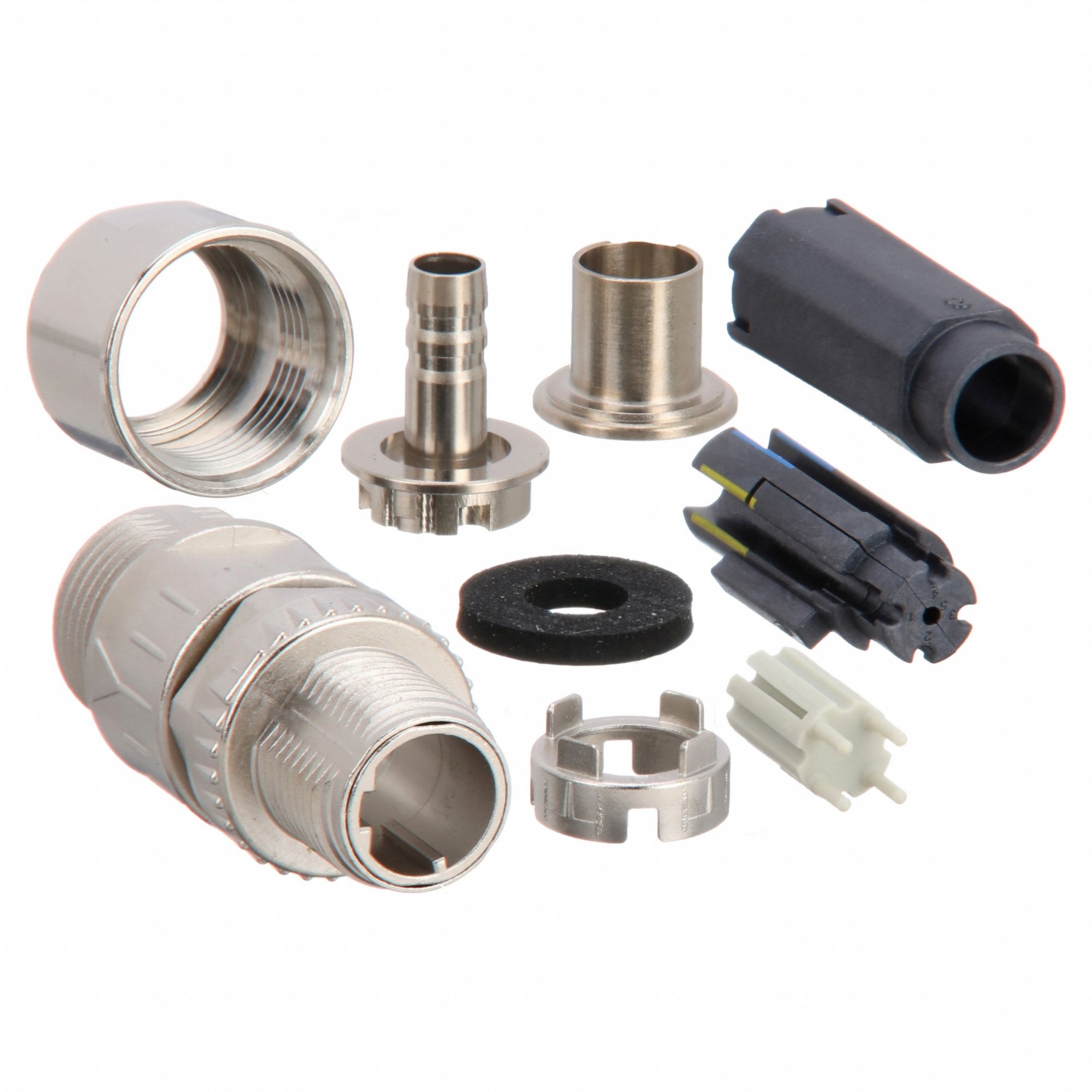

The HARTING M12 Circular Connector: D Coded (SKU 793YH7, MPN 21038811413) is a field-wireable industrial M12 circular connector with a pin body type, straight orientation, and male M12 thread mounting. It features D coding for 100 Mbps Cat 5e Industrial Ethernet and Profinet applications, with a zinc die-cast housing and IP67 rating. The connector uses crimp wiring and is designed for 100 Mbit Ethernet connectivity.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin | 4 |
| Type | M12 Male Thread, IP65/IP67, Crimp, Straight |
| Brand | HARTING |
| Coding | D |
| IP Rating | IP67 |
| Application | 100 Mbit Ethernet |
| Thread Size | M12 |
| Wiring Type | Crimp |
| Mounting Style | Male Thread |
| Connection Type | Crimp |
| Housing Material | Zinc Die-Cast |
| Connector Body Type | Pin |
| Connector Application | D-Coded for 100 Mbps Cat 5e Industrial Ethernet & Profinet |
| Connector Orientation | Straight |
| Manufacturer Part Number | 21038811413 |
