Hayward Flow Control 3G-OTH-442643 — Technical Specifications

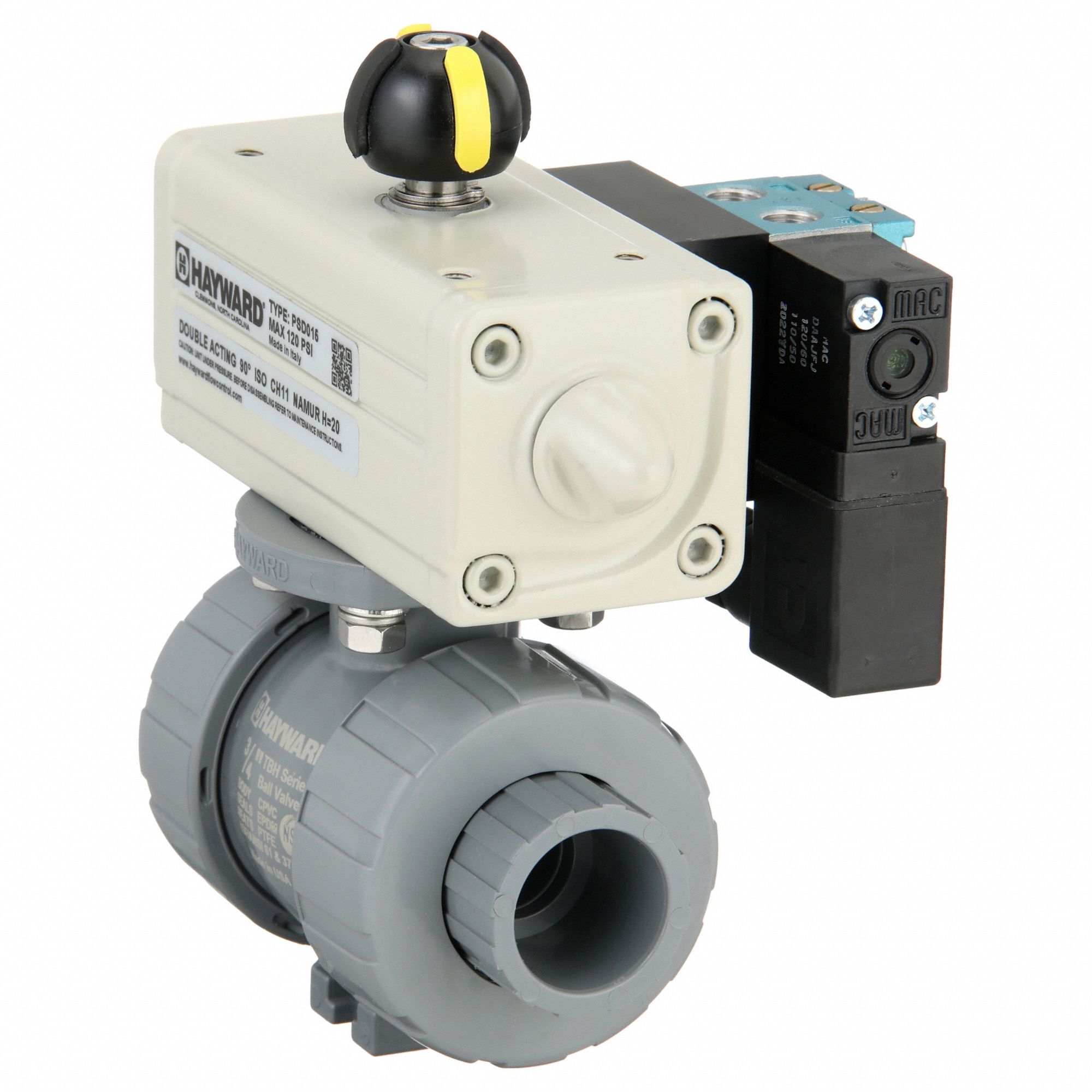

The HAYWARD FLOW CONTROL Pneumatically Actuated Two-Way Ball Valve is a 3/4 in CPVC pneumatically-actuated ball valve with an Air to Air actuator operation. It features a PSD actuator series with a Position Indicator and an ISO 5211 actuator mounting pad. The valve has True-Union Socket/True-Union NPT connections on both sides, is rated for water media, and complies with NSF/ANSI 372 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | CPVC, Air to Air |
| Brand | HAYWARD FLOW CONTROL |
| For Media | Water |
| IP Rating | Not Rated |
| Standards | NSF/ANSI 372 |
| Actuator Series | PSD |
| Connection Type | True-Union Socket/True-Union NPT |
| Actuator Features | Position Indicator |
| Included Mounting | ISO 5211 Actuator Mounting Pad |
| Vented Ball Valve | Non-Vented |
| Actuator Operation | Air to Air |
| Pilot Solenoid Voltage | Not Included |
| Connection Type - Side 1 | True-Union Socket/True-Union NPT |
| Connection Type - Side 2 | True-Union Socket/True-Union NPT |
| Manufacturer Part Number | PSDTBH207STEA8 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
