Hedland 3G-OTH-88819 — Technical Specifications

Name: Hedland 3G-OTH-88819 HEDLAND Flow Switch: Piston, Aluminum, 1/2 in FNPT, 1/2 in Connection Size, FNPT, 0.5 gpm – 5 gpm (MPN H601A-005-F1). Key specifications — Contact Rating (AC): 10 A @ 250V; Contact Rating (DC): 0.5 A @ 125V DC; Set Point Configuration: Adjustable; Housing Material: Aluminum; Switch Position: Normally Open; Switch Type: SPDT; Brand: HEDLAND.
Brand: Hedland

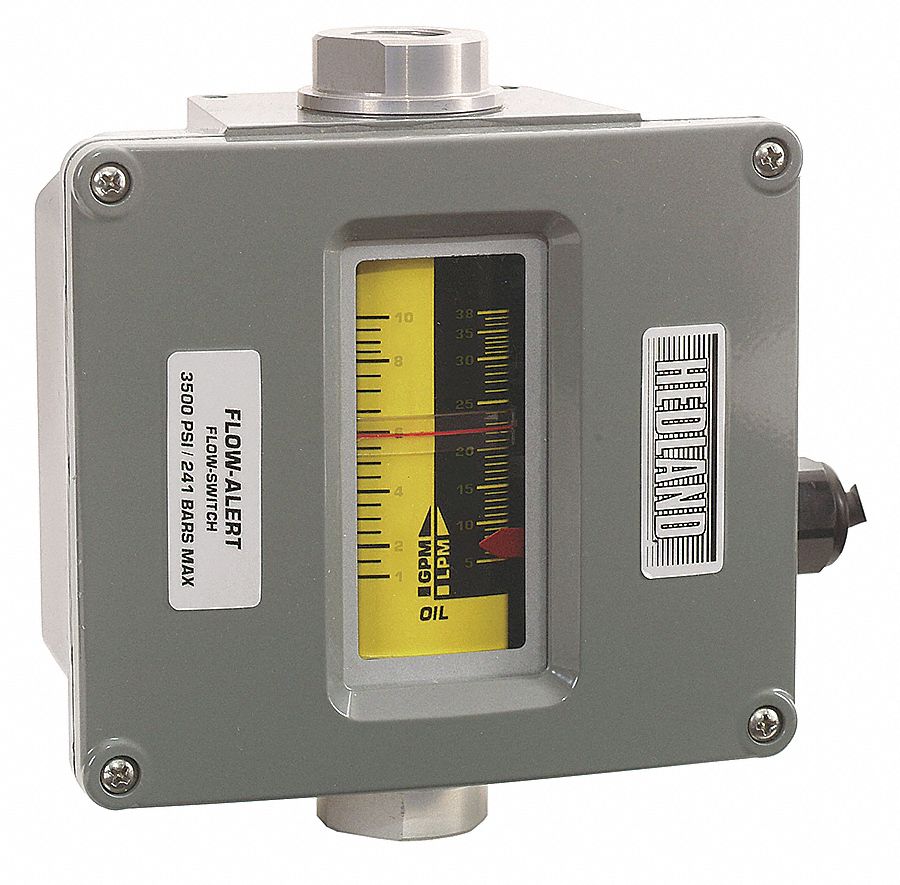

The HEDLAND Flow Switch: Piston (MPN H601A-005-F1) is a variable area flow switch for oil with an aluminum housing and 1/2 in FNPT connections. It features an adjustable set point, SPDT switch type, and normally open switch position, with contact ratings of 10 A @ 250V AC and 0.5 A @ 125V DC. The flow range is 0.5 gpm to 5 gpm.

View Product & Quote

Technical Specifications

Parameter	Value
FNPT	1/2 in
Type	Aluminum, FNPT, 0.5 gpm – 5 gpm
Brand	HEDLAND
Switch Type	SPDT
Connection Size	1/2 in
Switch Position	Normally Open
Housing Material	Aluminum
Contact Rating (AC)	10 A @ 250V
Contact Rating (DC)	0.5 A @ 125V DC
Set Point Configuration	Adjustable
Manufacturer Part Number	H601A-005-F1
