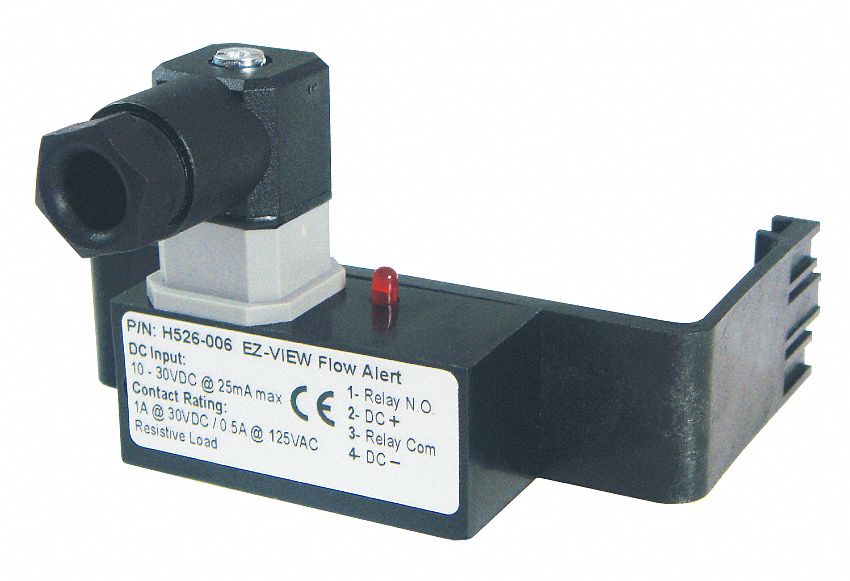

Hedland 3G-OTH-90180 — Technical Specifications
The HEDLAND Flow Switch: Paddle (MPN H526-006) is a normally open, adjustable set point flow switch for variable area flowmeters. It features a paddle-type design with contact ratings of 0.5 A @ 125V AC and 1 A @ 30V DC, and operates within a media temperature range of 32°F to 158°F with NPT connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 32°F to 158°F, NPT, NPT |
| Brand | HEDLAND |
| Switch Position | Normally Open |
| Flow Switch Type | Paddle |
| Media Temp (Max) | 158°F |
| Media Temp (Min) | 32°F |
| Contact Rating (AC) | 0.5 A @ 125V |
| Contact Rating (DC) | 1 A @ 30V |
| Set Point Configuration | Adjustable |
| Manufacturer Part Number | H526-006 |
