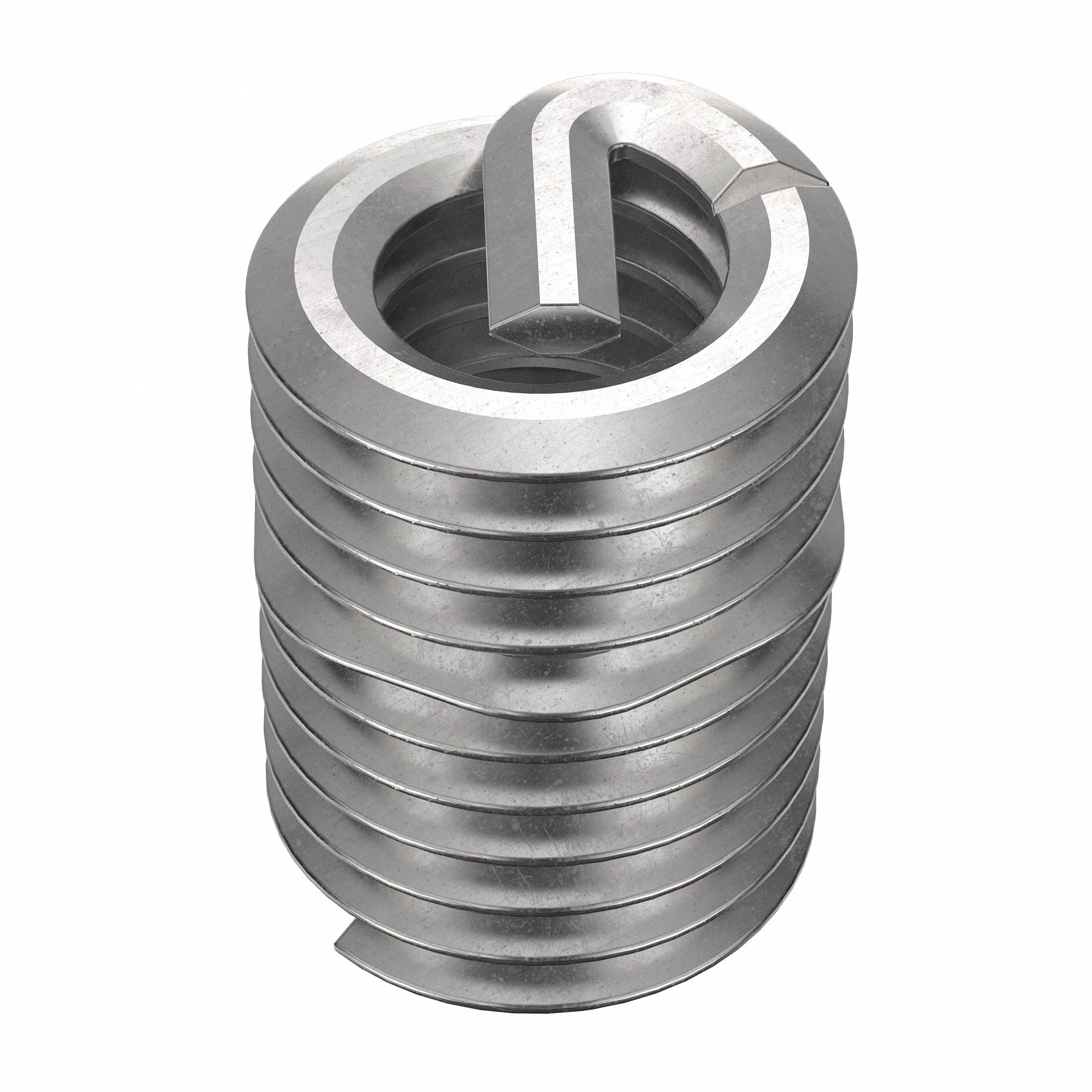

Heli-coil 3G-OTH-529094 — Technical Specifications
The HELI-COIL Helical Insert is a tanged tang style, screw-locking insert with M4-0.70 thread size, plain finish, and 18-8 material grade. It requires a 4.2mm drill bit and M4-0.70 STI tap, offering a tensile strength of 200,000 to 250,000 psi. Supplied in a 1,000-piece pack (MPN 4184-4CN080S), this metric, right-hand threaded insert is compatible with metal substrates.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Screw-Locking, M4-0.70 Thread Size, Plain, 1,000 PK |
| Brand | HELI-COIL |
| Finish Type | Plain |
| Thread Type | Coarse |
| STI Tap Size | M4-0.70 |
| Drill Bit Size | 4.2mm |
| Tensile Strength | 200,000 to 250,000 psi |
| Thread Direction | Right Hand |
| Compatible Material | Metal |
| Material Grade/Class | 18-8 |
| System Of Measurement | Metric |
| Manufacturer Part Number | 4184-4CN080S |
