Heli-coil 3G-OTH-528945 — Technical Specifications

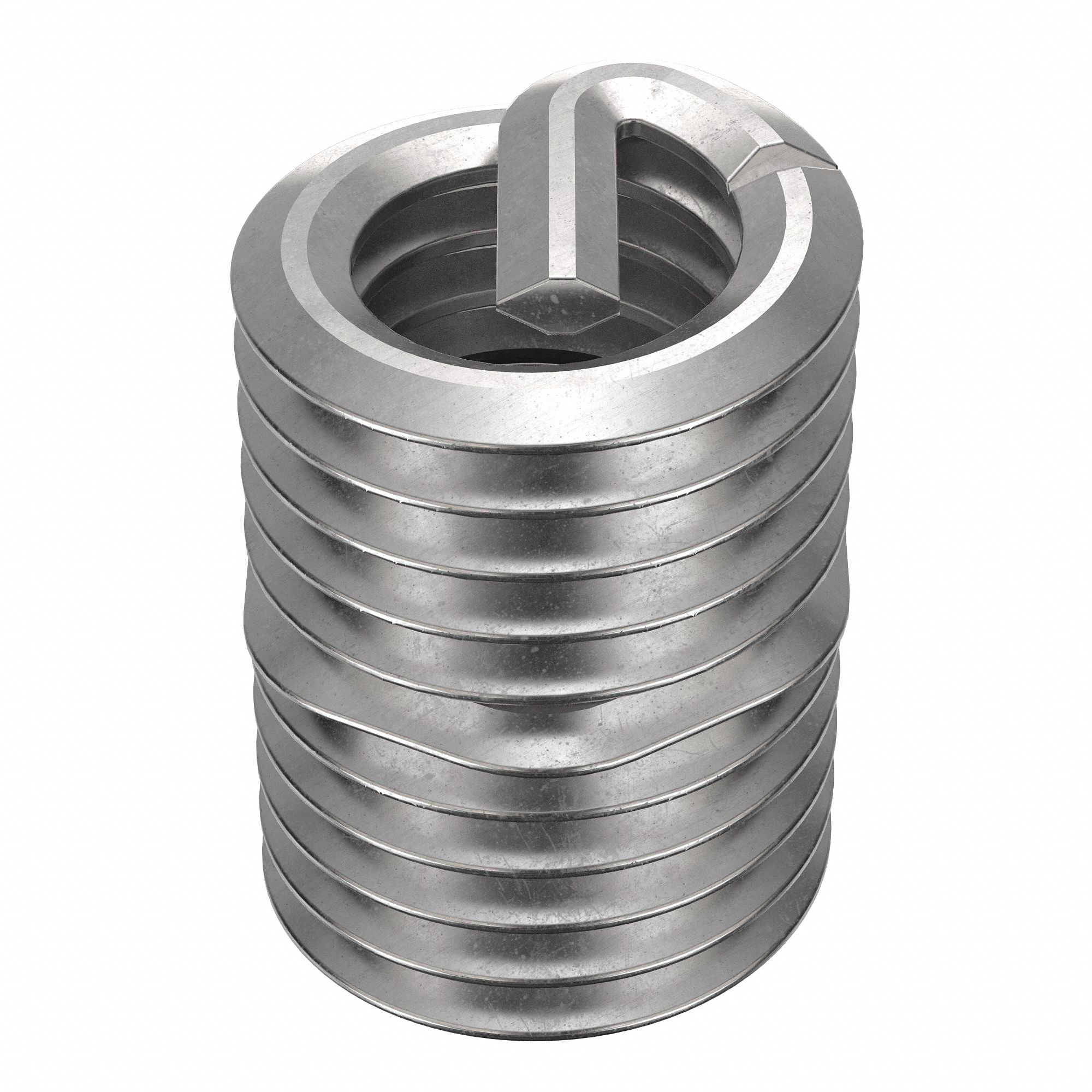

The HELI-COIL Helical Insert is a tanged tang style, screw-locking insert with M6-1.00 thread size, plain finish, and 18-8 material grade. It requires an STI tap size of M6-1.00 and a 6.25mm drill bit, with a tensile strength of 200,000 to 250,000 psi. Supplied in a 500-piece pack, this right-hand, coarse-thread insert is compatible with metal substrates.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Screw-Locking, M6-1.00 Thread Size, Plain, 500 PK |
| Brand | HELI-COIL |
| Finish Type | Plain |
| Thread Type | Coarse |
| STI Tap Size | M6-1.00 |
| Drill Bit Size | 6.25mm |
| Tensile Strength | 200,000 to 250,000 psi |
| Thread Direction | Right Hand |
| Compatible Material | Metal |
| Material Grade/Class | 18-8 |
| System Of Measurement | Metric |
| Manufacturer Part Number | 4184-6CN120S |
