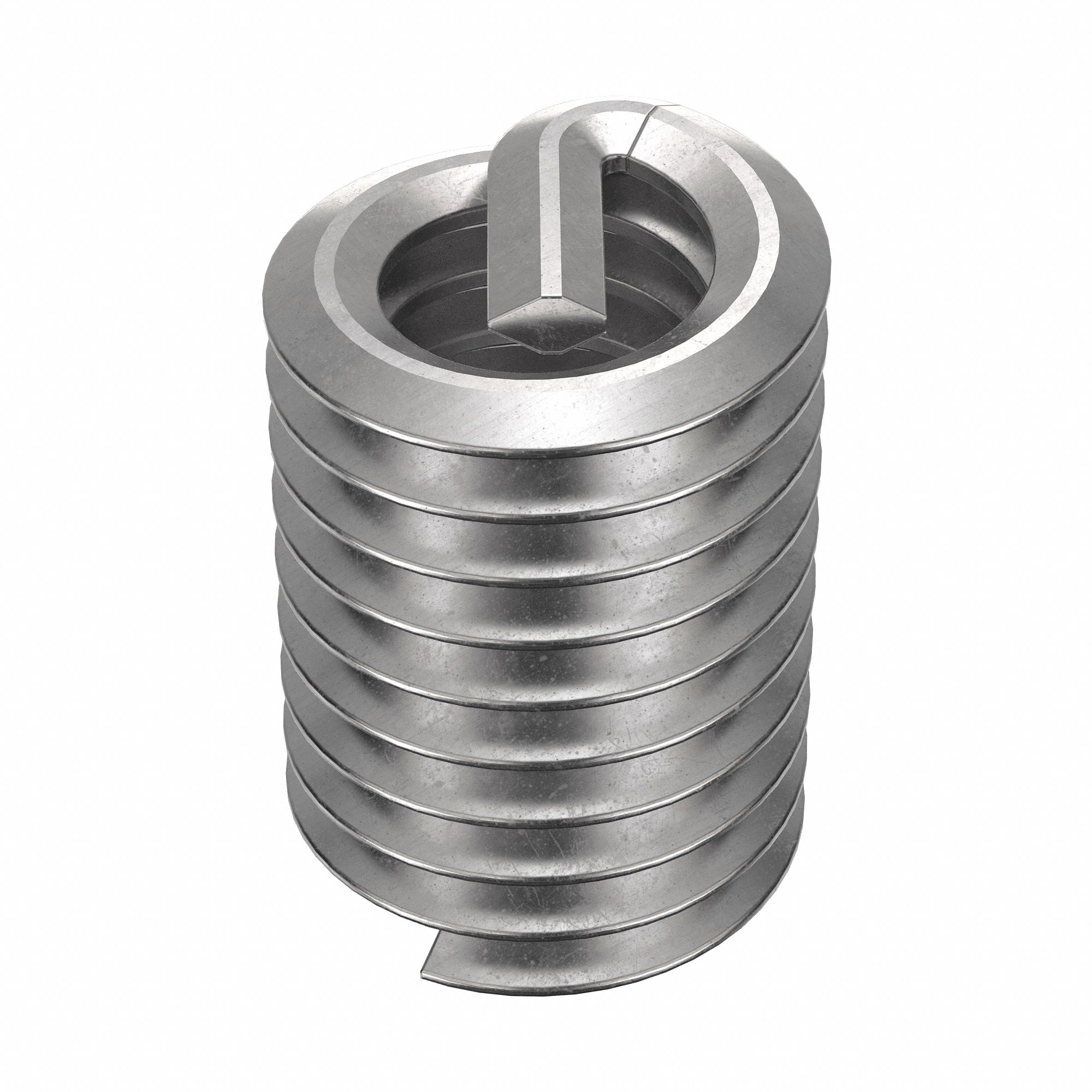

Heli-coil 3G-OTH-528834 — Technical Specifications
The HELI-COIL Helical Insert is a tanged tang-style, screw-locking insert with #8-32 coarse thread size, 18-8 material grade, and a tensile strength of 200,000 to 250,000 psi. Supplied in a 100-pack with dry film lubricant finish, it is compatible with metal and uses a right-hand thread direction.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Screw-Locking, #8-32 Thread Size, 100 PK |
| Brand | HELI-COIL |
| Finish Type | Dry Film Lubricant |
| Thread Type | Coarse |
| STI Tap Size | #8-32 |
| Tensile Strength | 200,000 to 250,000 psi |
| Thread Direction | Right Hand |
| Compatible Material | Metal |
| Material Grade/Class | 18-8 |
| System Of Measurement | Inch |
| Manufacturer Part Number | A3585-2CNW328 |
