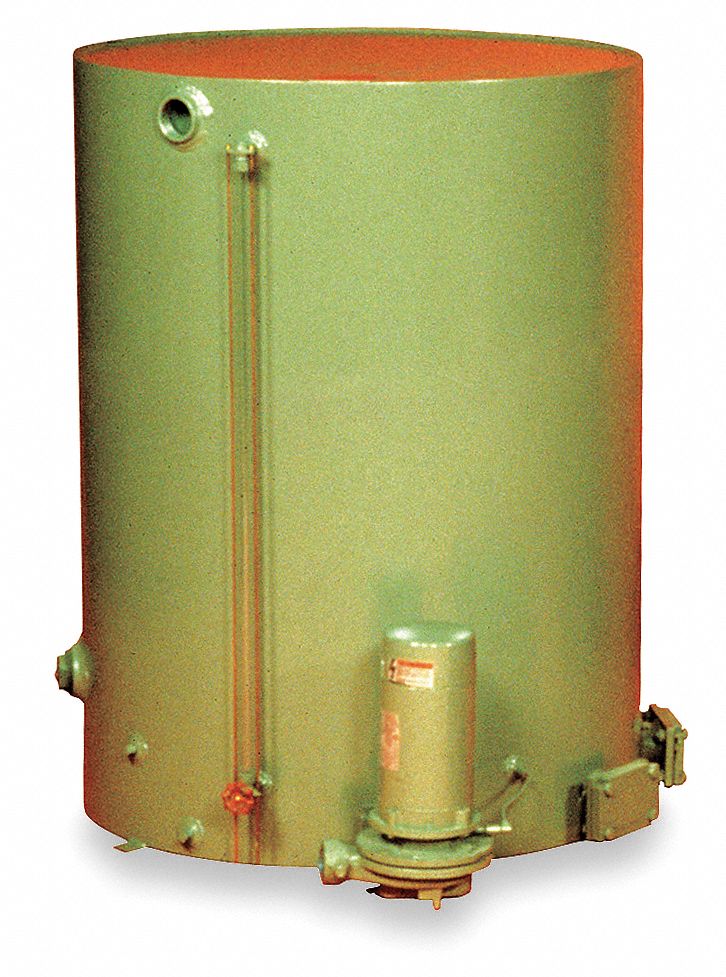

Hoffman 3G-OTH-84507 — Technical Specifications
The HOFFMAN Boiler Feed Pump (MPN 161001) is a vertical tank boiler feed pump with a 50-gallon tank capacity. It features a simplex configuration, a cast iron pump casing, and operates on 115/230V AC with a 1/3 hp motor. The unit includes FNPT inlet and discharge connections.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 115/230V |
| Type | Simplex, Vertical, 1/3 hp, Steel, FNPT |
| Brand | HOFFMAN |
| Tank Orientation | Vertical |
| Nameplate Voltage | 115/230V AC |
| Pump Casing Material | Cast Iron |
| Inlet Connection Type | FNPT |
| Manufacturer Part Number | 161001 |
| Discharge Connection Type | FNPT |
