Honeywell 3G-OTH-35334 — Technical Specifications

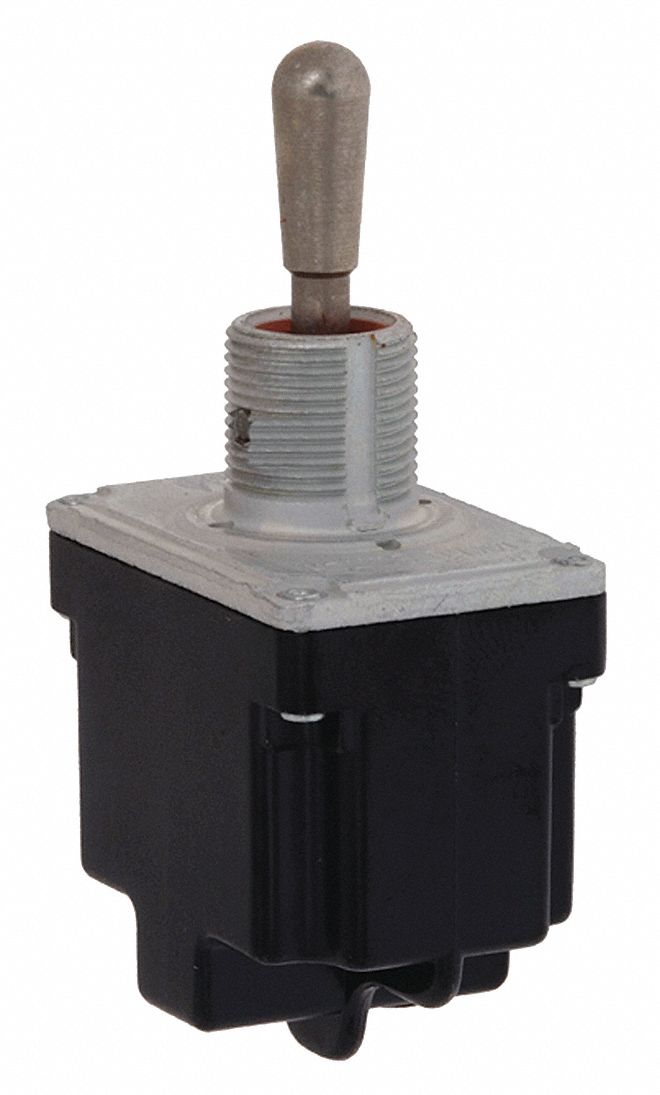

The HONEYWELL TL Series 2TL1-1 is a panel-mount toggle switch with a 3-position On/Off/On switch function configuration. It features a DPDT contact form with 6 screw terminal connections and is rated for 15 A at 250 V AC, with a horsepower rating of 1/2 hp at 125 V AC.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | DPDT, Screw Terminals Connection, TL Series |
| Brand | HONEYWELL |
| Series | TL |
| Horsepower | 1/2 hp @ 125V AC |
| Connections | 6 |
| AC Contact Rating | 15 A @ 250 V |
| Manufacturer Part Number | 2TL1-1 |
| Switch Function Configuration | On/Off/On |
