Honeywell 3G-OTH-34234 — Technical Specifications

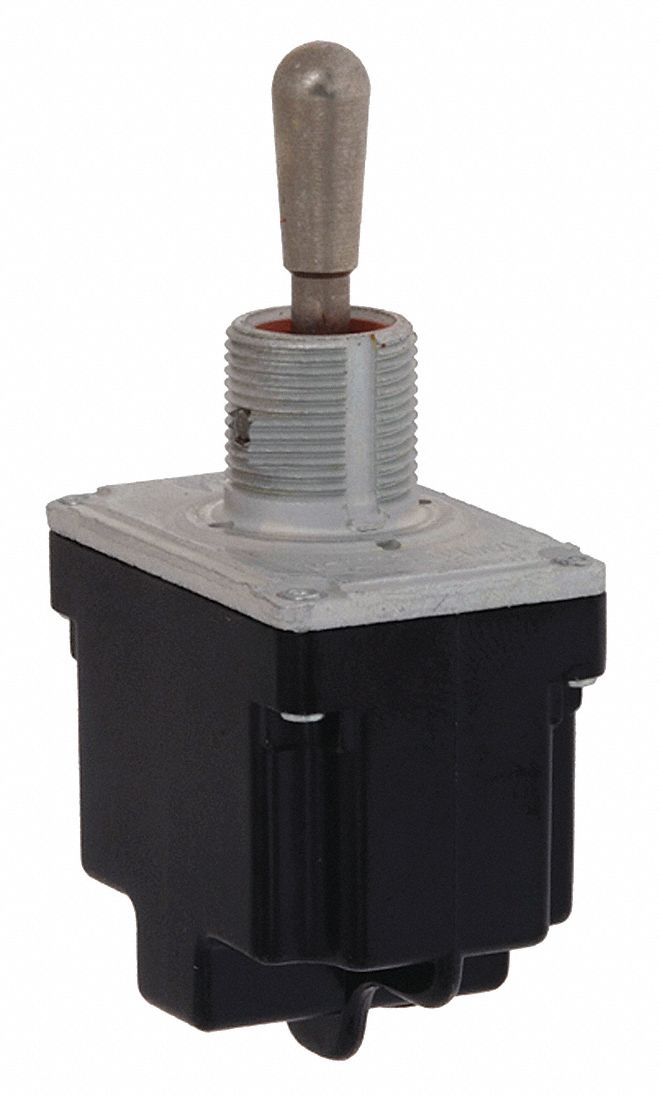

The Honeywell TL Series 2TL1-2 is a panel-mount toggle switch with a 2-position On/Off switch function configuration. It features a DPST (Double Pole Single Throw) contact form with 4 screw terminal connections. The switch is rated for 15 A at 125 V AC and 1 hp at 250 V AC.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | DPST, Screw Terminals Connection, TL Series |
| Brand | HONEYWELL |
| Series | TL |
| Horsepower | 1 hp @ 250V AC |
| Connections | 4 |
| AC Contact Rating | 15 A @ 125 V |
| Manufacturer Part Number | 2TL1-2 |
| Switch Function Configuration | On/Off |
