Honeywell Home 3G-OTH-67590 — Technical Specifications

Name: Honeywell Home 3G-OTH-67590 Immersion Controller: Circulator/High Limit/Low Limit, 130°F Min, 240°F Max, Vertical, 1 Switch (MPN L8124A1015). Key specifications — Application: Circulator; Auto/Manual Switch Included: Yes; Brand: HONEYWELL HOME; Manufacturer Part Number: L8124A1015; Differential Temperature: 10°F to 25°F Adjustable (Low Limit); Mounting Orientation: Vertical.
Brand: Honeywell Home

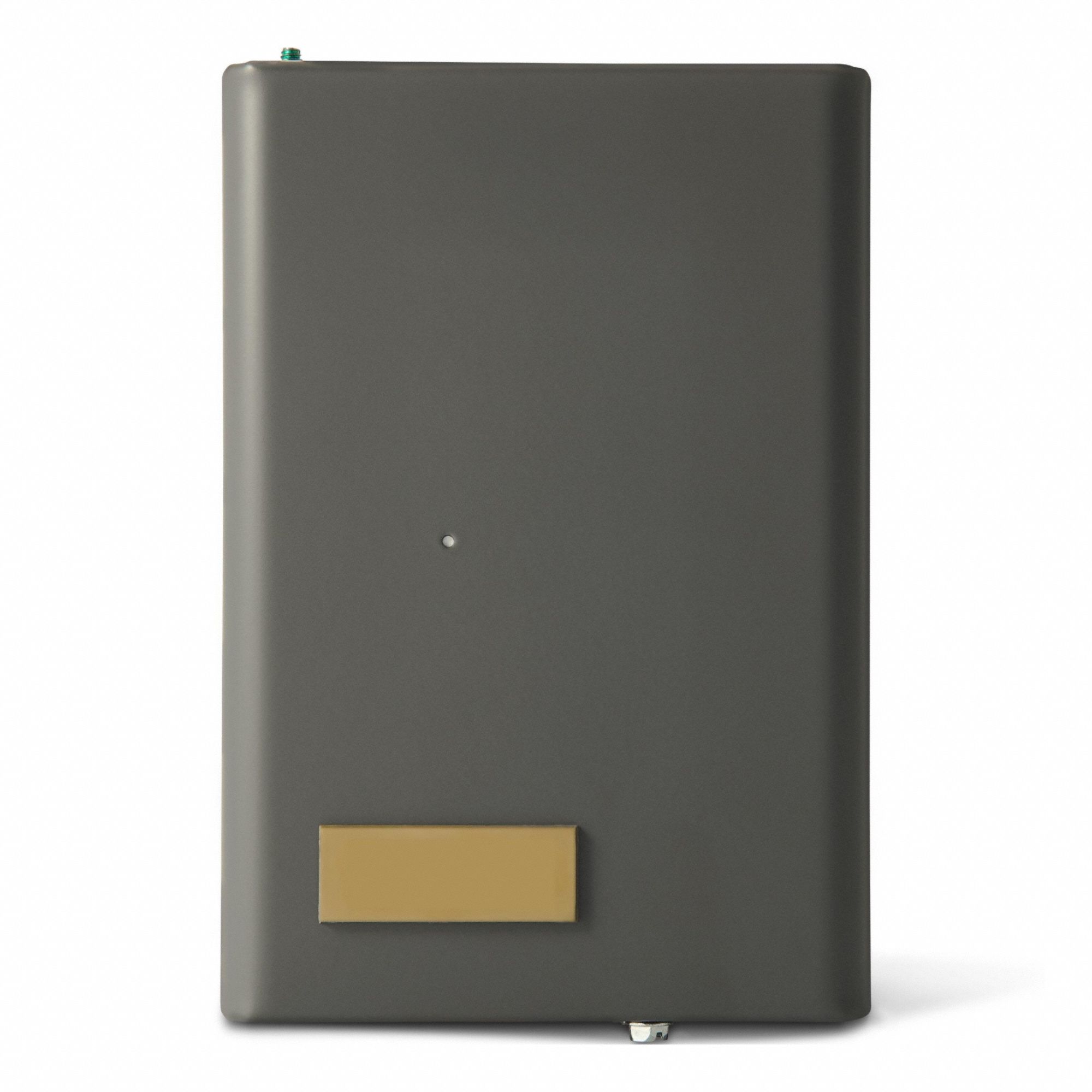

The HONEYWELL HOME L8124A1015 is a triple-function immersion controller combining circulator, high limit, and low limit functions. It features a vertical mounting orientation, an adjustable low-limit differential temperature of 10°F to 25°F, and includes an auto/manual switch. The controller operates within a 130°F minimum to 240°F maximum temperature range.

View Product & Quote

Technical Specifications

Parameter	Value
Max	240°F
Type	130°F Min, Vertical
Brand	HONEYWELL HOME
Switch	1
Application	Circulator
Mounting Orientation	Vertical
Differential Temperature	10°F to 25°F Adjustable (Low Limit)
Manufacturer Part Number	L8124A1015
Auto/Manual Switch Included	Yes
