Ifm 3G-OTH-92993 — Technical Specifications

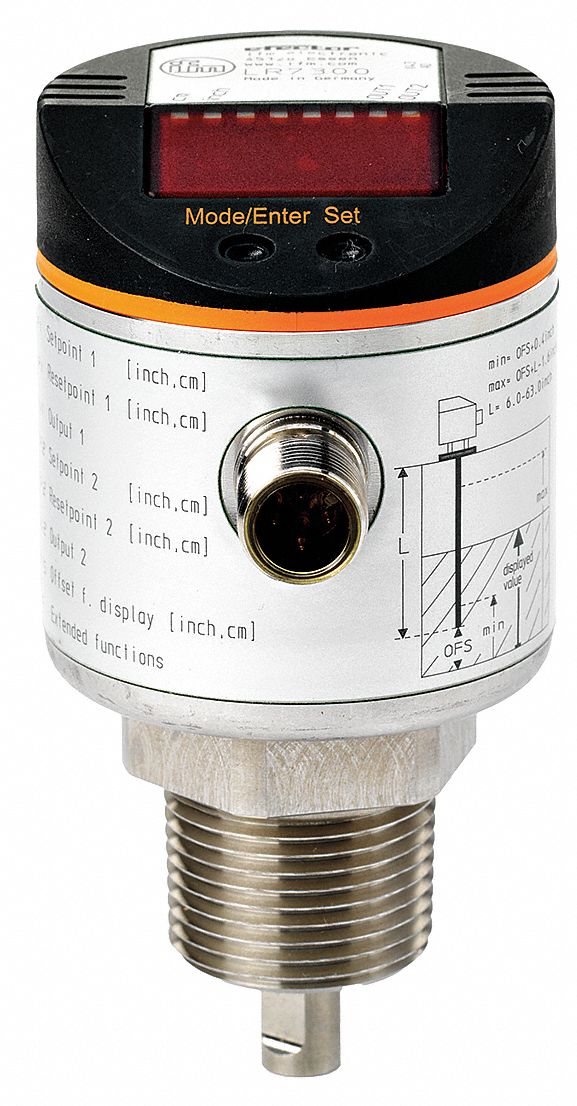

The IFM Efector LR Series Sensor Heads (SKU 24JZ40, MPN LR3300) is a guided wave radar level sensor with a rod probe, designed for vertical mounting and water media. It features a stainless steel body and 316 stainless steel stem and probe, with an accuracy of +/-7 mm. The sensor operates on 18/30V DC with a 4-wire output configuration and a 3/4 in NPT connection.
Technical Specifications
| Parameter | Value |
|---|---|
| NPT | 3/4 in |
| Type | Vertical, For Water Media Type, NPT, Rod |
| Brand | IFM |
| Accuracy | +/-7 mm |
| Probe Type | Rod |
| Body Material | Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Probe Material | 316 Stainless Steel |
| Nameplate Voltage | 18/30V DC |
| Mounting Orientation | Vertical |
| Manufacturer Part Number | LR3300 |
| Output Wire Configuration | 4-Wire |
