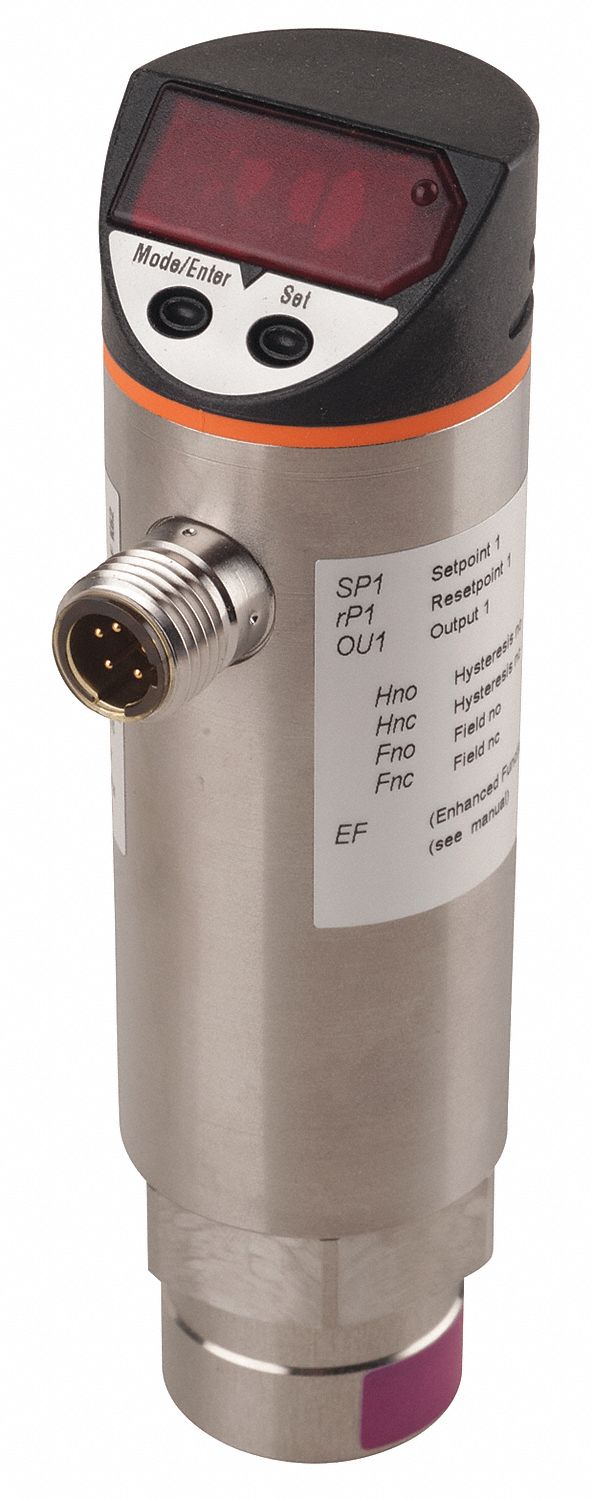

Ifm 3G-OTH-32035 — Technical Specifications
The IFM PN Series Digital Pressure Sensor (MPN PN4221) is a digital pressure sensor for gas media, featuring a 0 psi to 3,630 psi range and a Triac output. It has a stainless steel housing and wetted materials, a 1/4 in NPT pressure connection, a 5 Pin 1/2 in UNF electrical connector, and a 2.5 A output current rating.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | IFM |
| Series | PN |
| Product Type | Digital Pressure Sensor |
| Compatible Media | Gas |
| Housing Material | Stainless Steel |
| Wetted Materials | Stainless Steel |
| Output Current Rating | 2.5 A |
| Manufacturer Part Number | PN4221 |
| Pressure Connection Type | 1/4 in NPT |
| Electrical Connection Type | 5 Pin 1/2 in UNF Connector |
